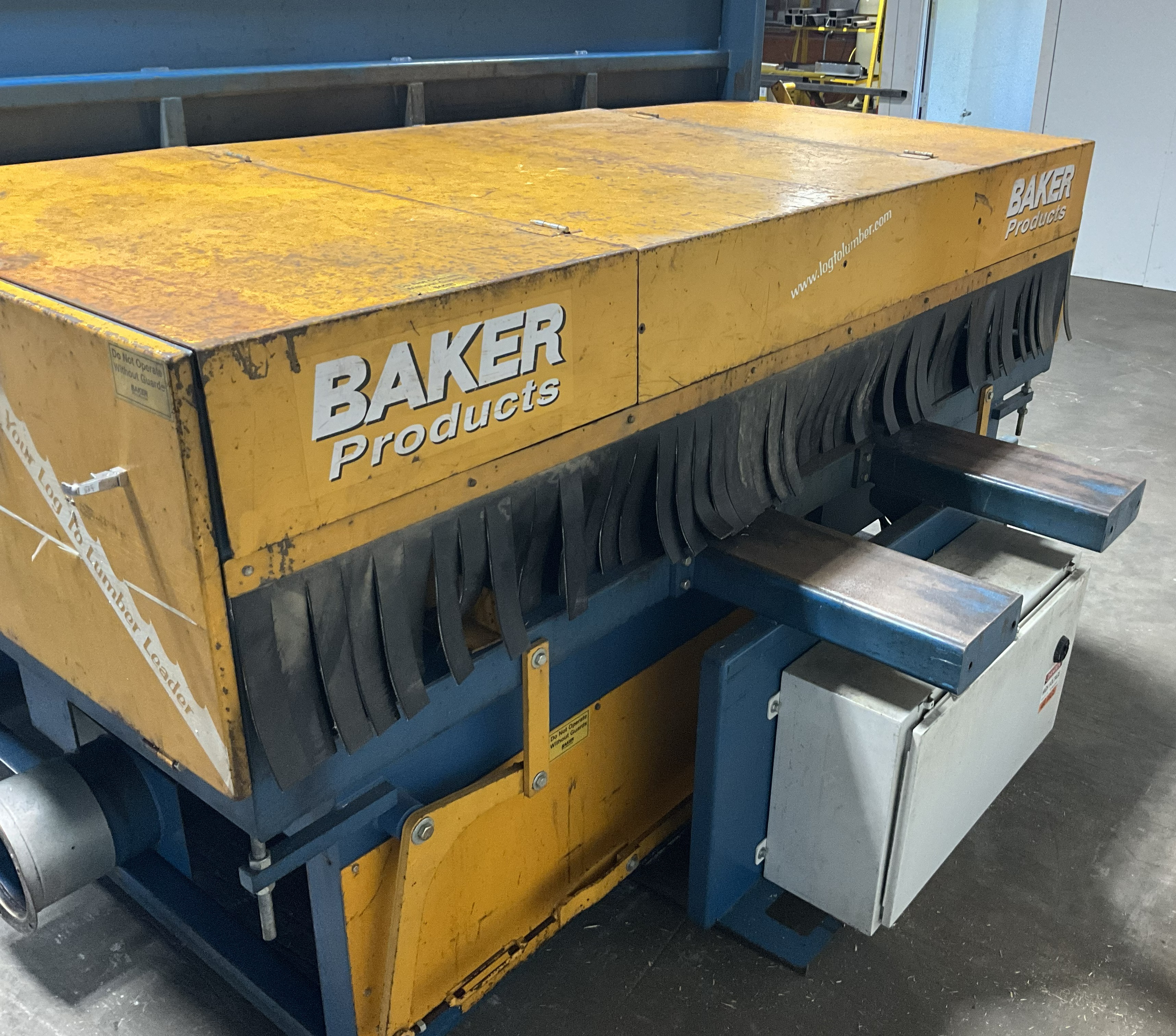

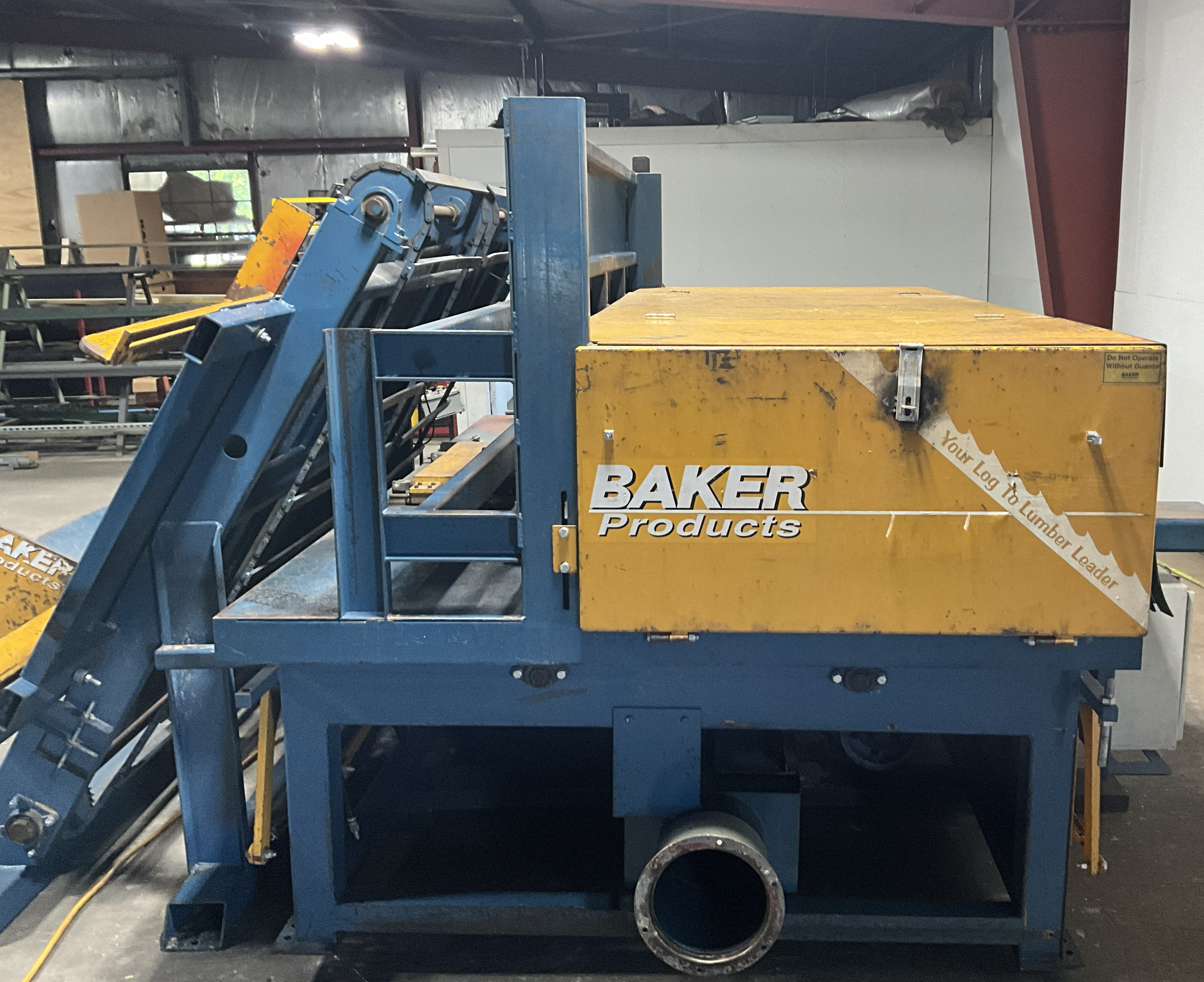

Baker BN-O Double Head Notcher with Unscrambler - Pre-Owned

Equipment ID: 3738

Back to Products

/Resources/95908f04-9956-428e-b5c9-a26b970467a7/3738a.jpg

/Resources/e7d0a707-718f-4e81-9e81-891345066590/3738b.jpg

/Resources/c7330177-525b-4aee-a614-5fad5c1d0f08/3738c.jpg

/Resources/7a860f6e-beb6-468e-baaf-6dadd2099f28/3738d.jpg

/Resources/412c62c4-ba12-4324-b8b6-d14c56b6aa89/3738e.jpg

/Resources/ec63772e-3235-4f59-a6eb-7cc77480255e/3738f.jpg

/Resources/ea1ea5fc-2329-4649-ab99-1818c1857681/3738g.jpg

/Resources/82eae7d6-1003-45b8-96e7-d2063644ade4/3738h.jpg

/Resources/75f691dc-9861-4c48-911d-0b082960941e/3738i.jpg

Product Overview

The Baker Model BN-O Double Notcher features dual notching heads for continuous, high-volume stringer production.

Notches both sides of a board in one pass.

Fully adjustable for depth, width, and length.

Up to 4,000 Stringers per Hour!

GET FINANCING

Specifications

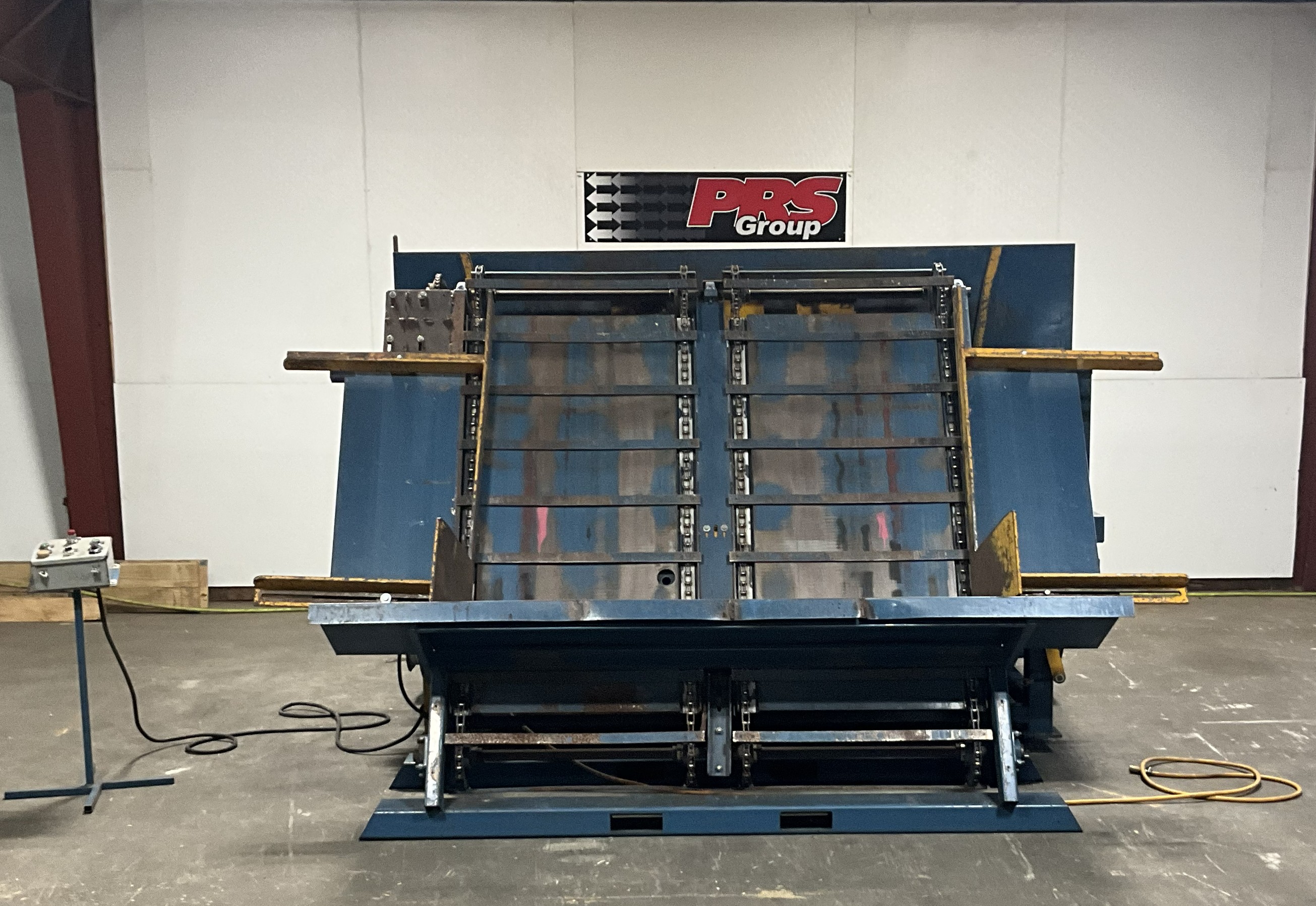

• Hopper feed + unscrambler integrated
• Table-top hand crank for notch depth: 0–3" (76 mm)
• Std. cutter head width adjustable from 6” inside up to 53.5” outside.

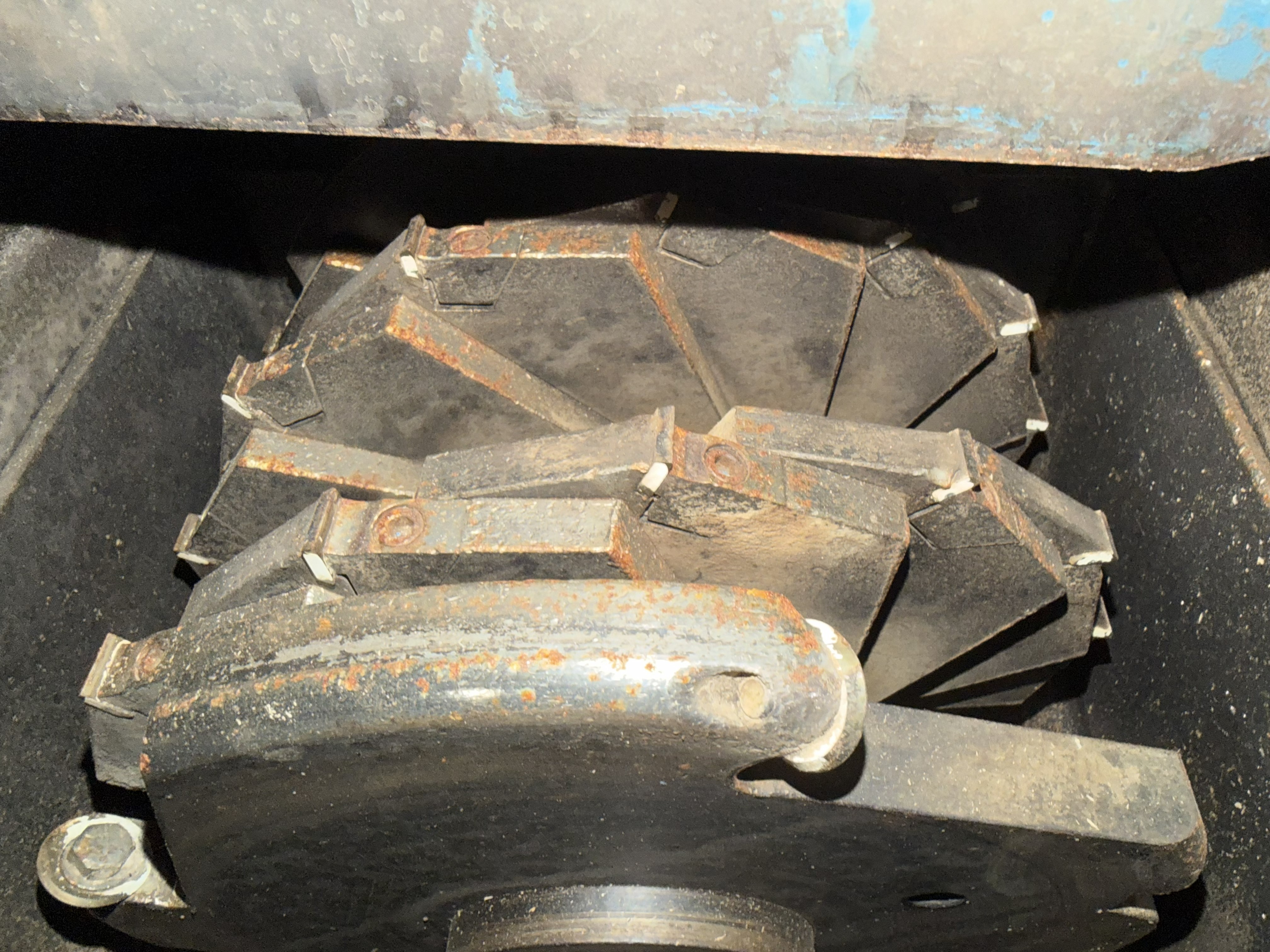

• Dual 12" x 9" cutter heads with indexable tips
• Full enclosure for operator safety
• Integrated 10" dust ports

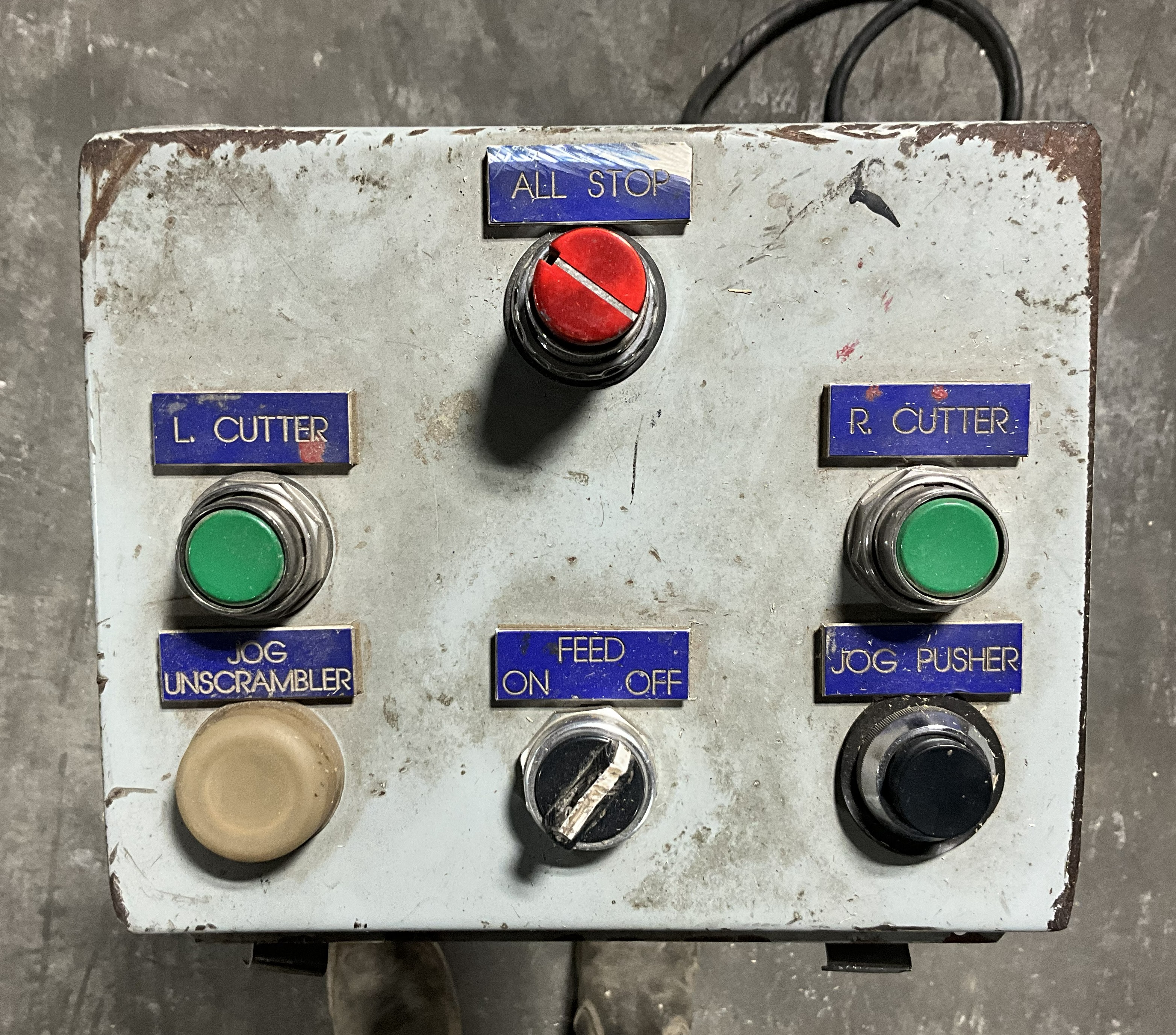

• Completely prewired with NEMA control panel, disconnect, and E-stop

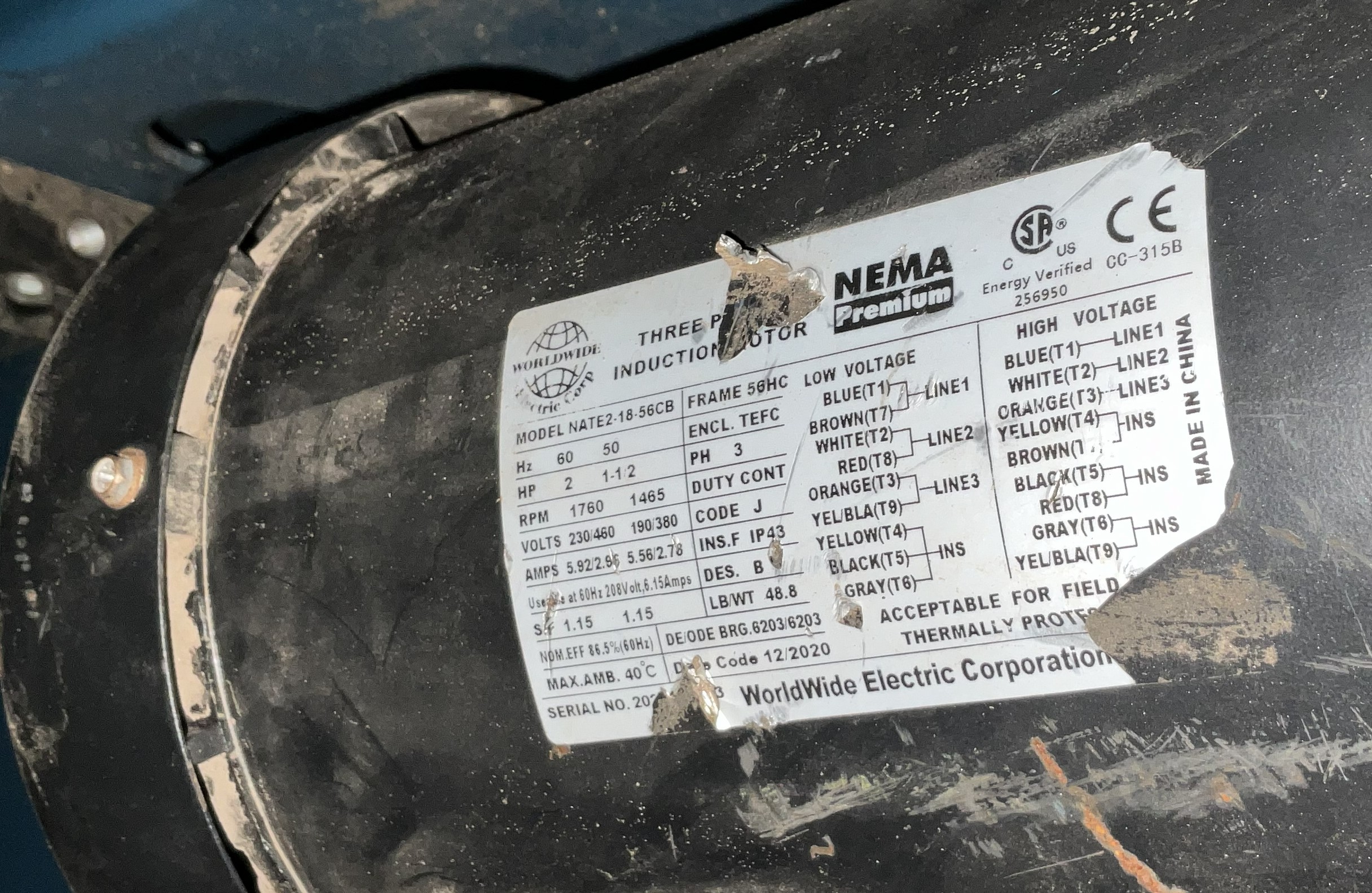

• Two 30 HP TEFC 3 phase motors (one per cutter head)

Additional Information

Capacities:
Material size: 2x4’s , Material Length: 28″ to 76″
Sawdust Port: 10″ dia.; 3,600 CFM recommended
Notch Length: 9″, Notch Depth: 0″ to 3″ (76 mm)
Production Rate: Up to 4,000 stringers/hour

Machine Dimensions:
Height: 78 in. (1.98 m)
Length: 90 in. (2.29 m)
Width: 101 in. (2.57 m)

Machine Weight:
Approx. 5000 lbs. (2,268 kg)
