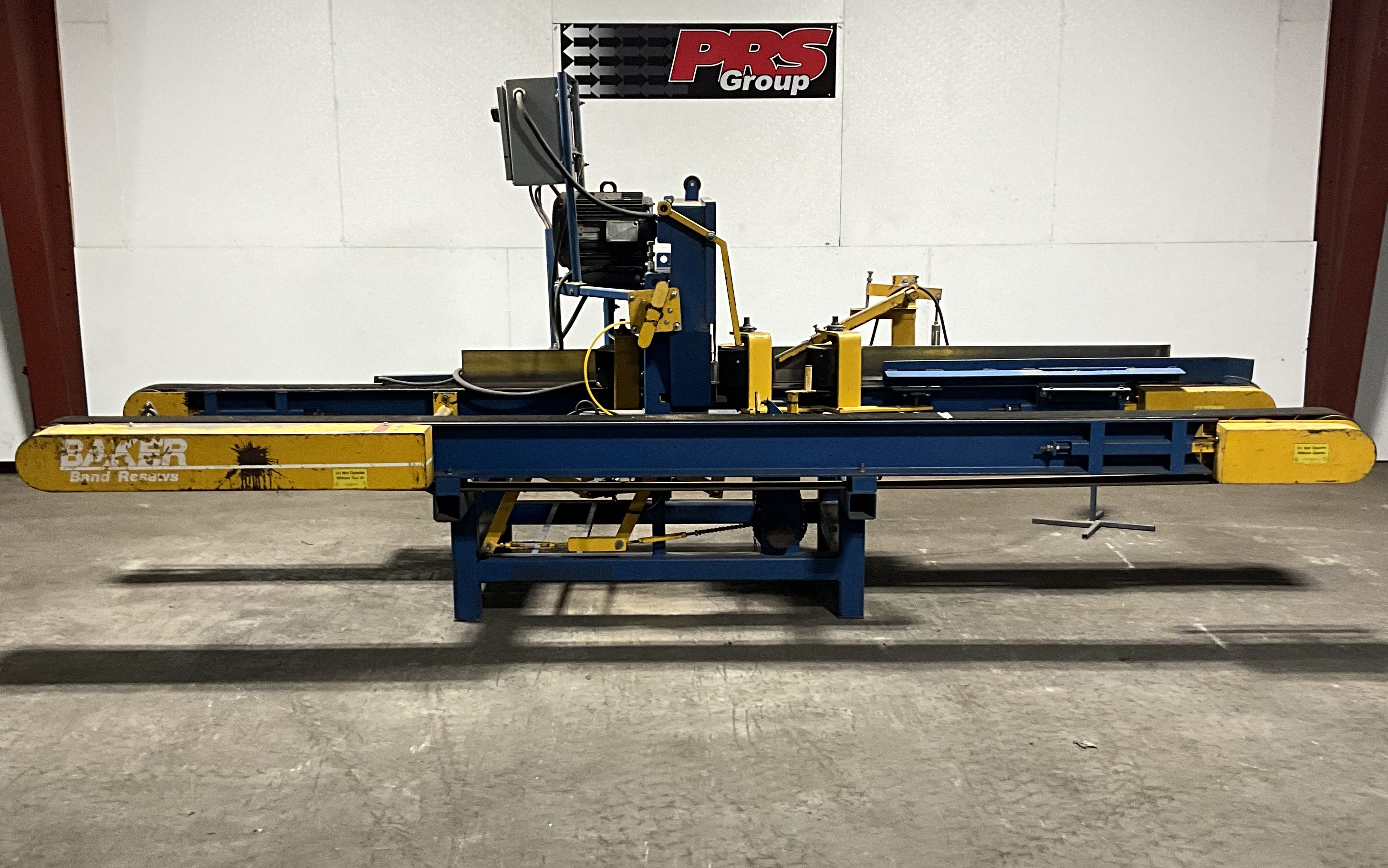

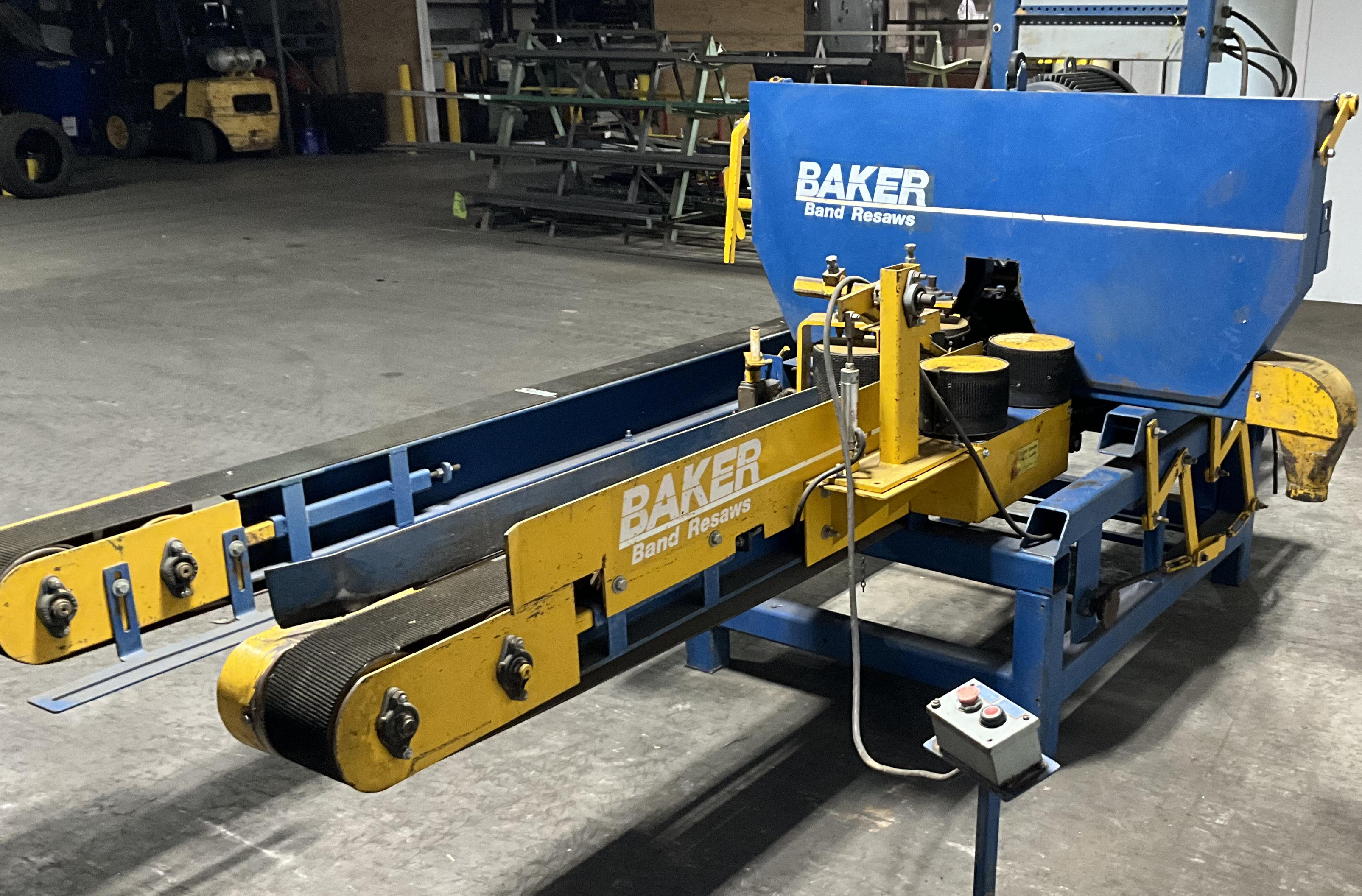

Baker Single Head Resaw BBR 480 V Three Phase - Pre-Owned

Equipment ID: 3604

Back to Products

/Resources/21de9daa-4e47-4720-b03d-168b8e06694d/3604a.jpg

/Resources/977d34c3-7f85-4be4-b28b-0a122b238ce7/3604b.png

/Resources/d80b61d7-5698-4329-b99a-22f609c5bcf4/3604c.jpg

/Resources/f7eafc0e-caff-4039-88ce-a8c94d5b6ea6/3604d.jpg

/Resources/1a708f6d-487f-4eee-a197-7d860de7ff1b/3604e.jpg

/Resources/697471fb-d070-4e18-8822-38f8799050fc/3604f.jpg

/Resources/28335b04-65c2-491f-a0fb-8bdb06409ce6/3604g.jpg

Product Overview

OVERVIEW (From Baker Website)

Model BRO features a fixed-height conveyor and precision head/blade height adjustment for consistent, high-accuracy cuts.

Ideal for resawing random-width material, sizing cants, and other applications, they outperform traditional gang rips by producing up to 60–70% less sawdust and up to 25% more usable boards.

Engineered for durability, easy maintenance, and seamless operation, Baker Multi-Head Resaws can be configured with as many heads as your production demands.

Specifications

Machine Dimensions: Based on a Single Head
Height: 68 in. (1.73 m)
Length: 180 in. (2.03 m)
Width: 77 in. BX- 85in. (2.13 m), (2.16m)

Capacities:
Blades: 13'2" x 1" x 0.035" band blades
Material Capacity: B – 6" × 12"; Sawdust Outlet: 4" diameter
Feed Speed: Variable, 20–120 FPM, Conveyor Width: B – 6"

Standard Equipment

- Thin-kerf blade system

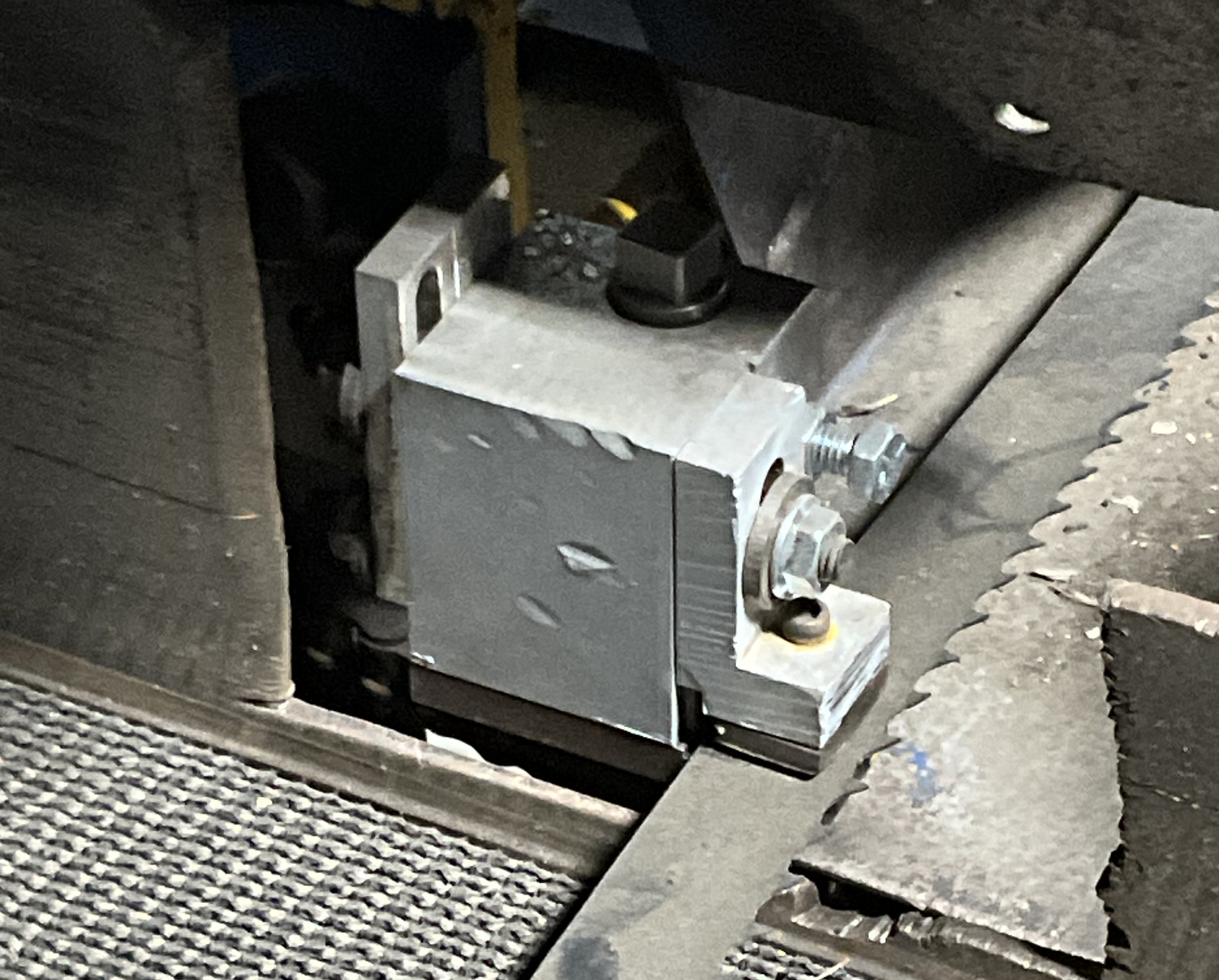

- Low-Profile Flat Guides

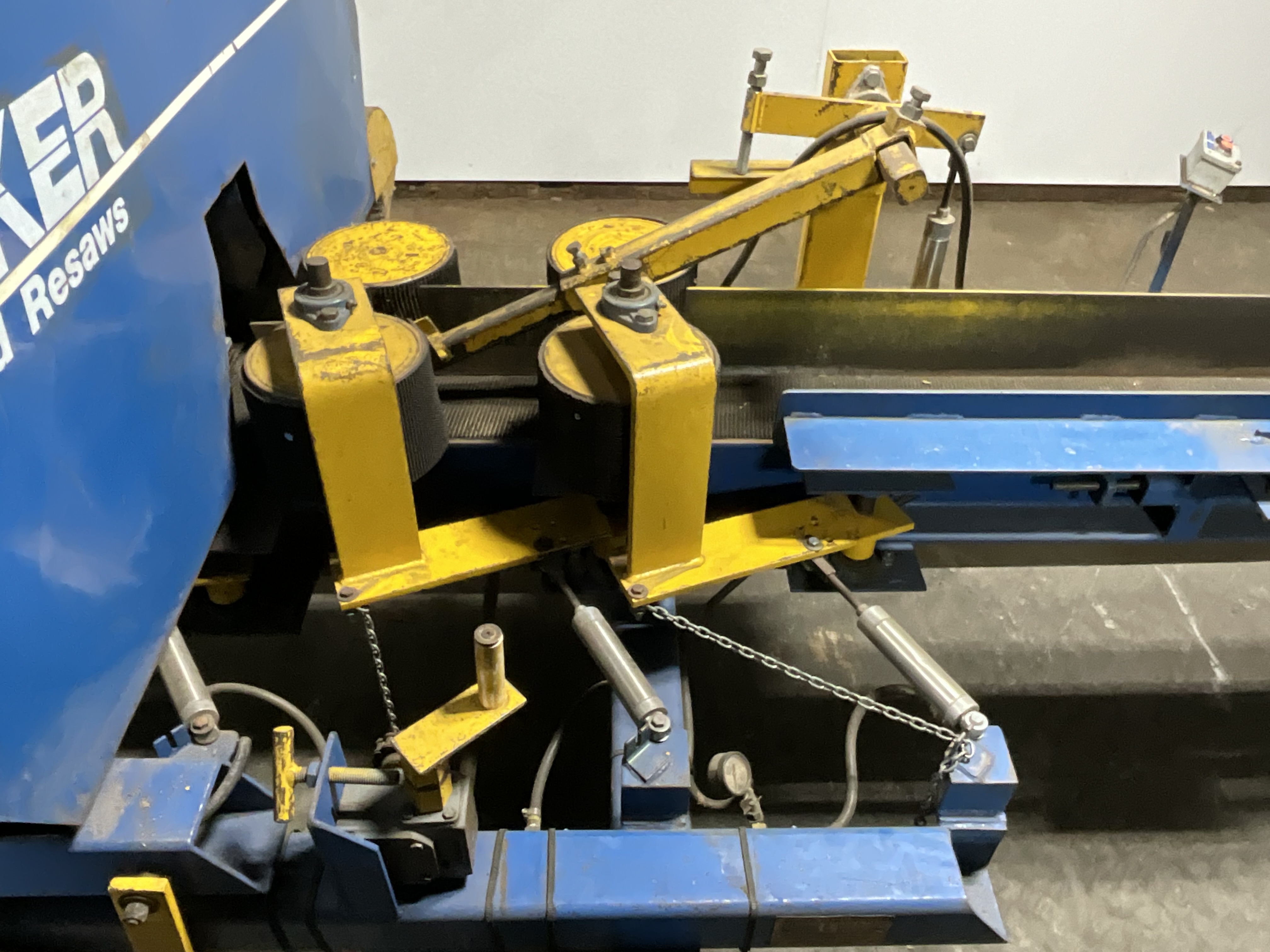

- Powered infeed hold-down
- Rough-top conveyor belting
- Mechanical spring blade tensioning
- 28” diameter, CNC-machined, dynamically-balanced, solid, all-steel band wheels
- Baker’s 40:1 manual raise and lower system. Easy adjust with Std range from 0” to 9” cutting thickness.
- 4" Round dust chute
