Product Overview

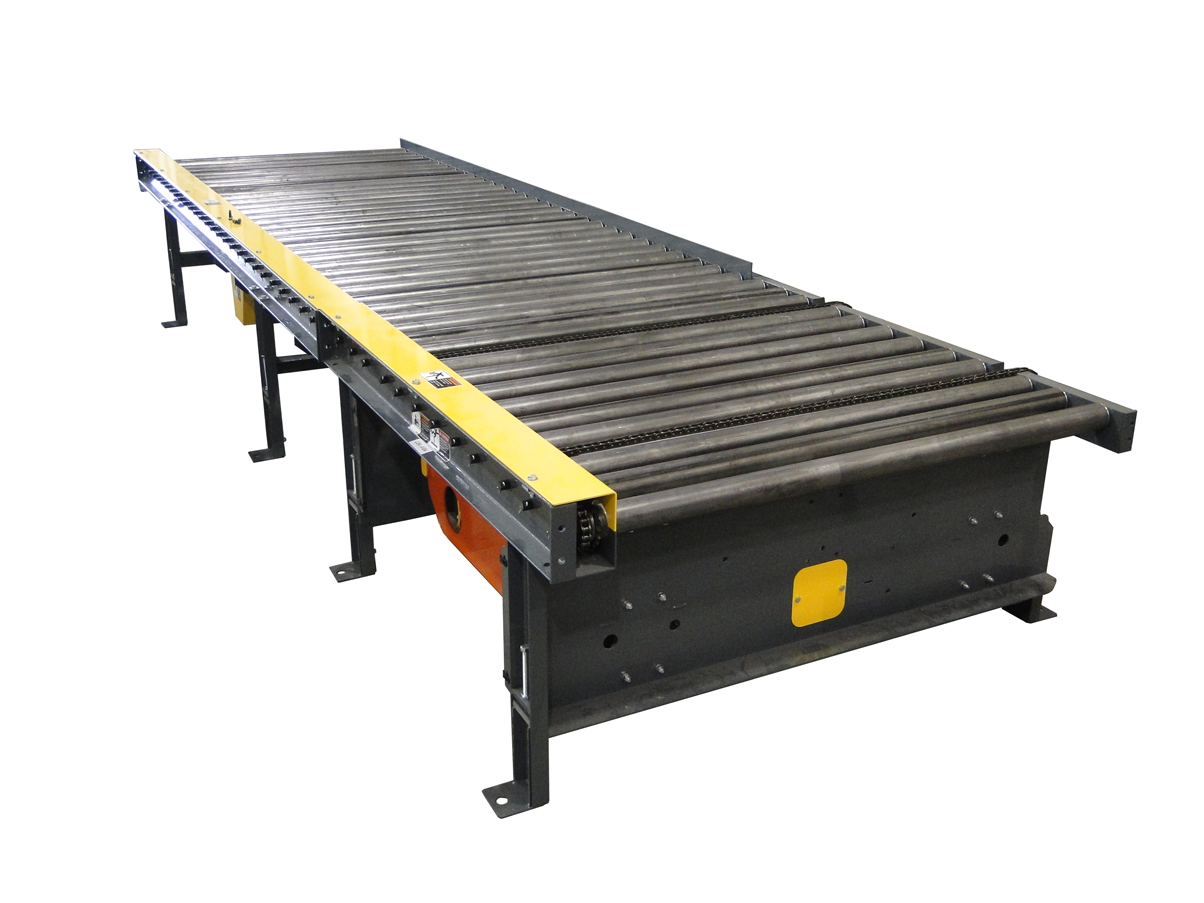

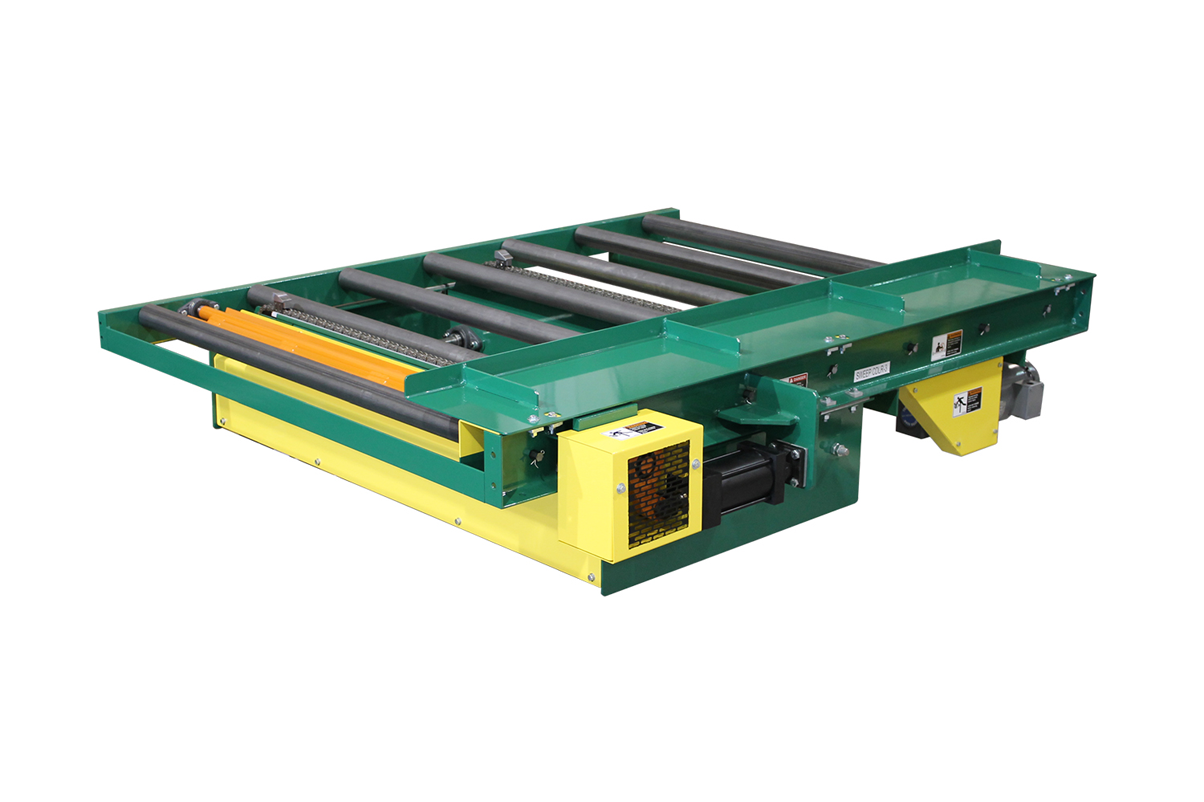

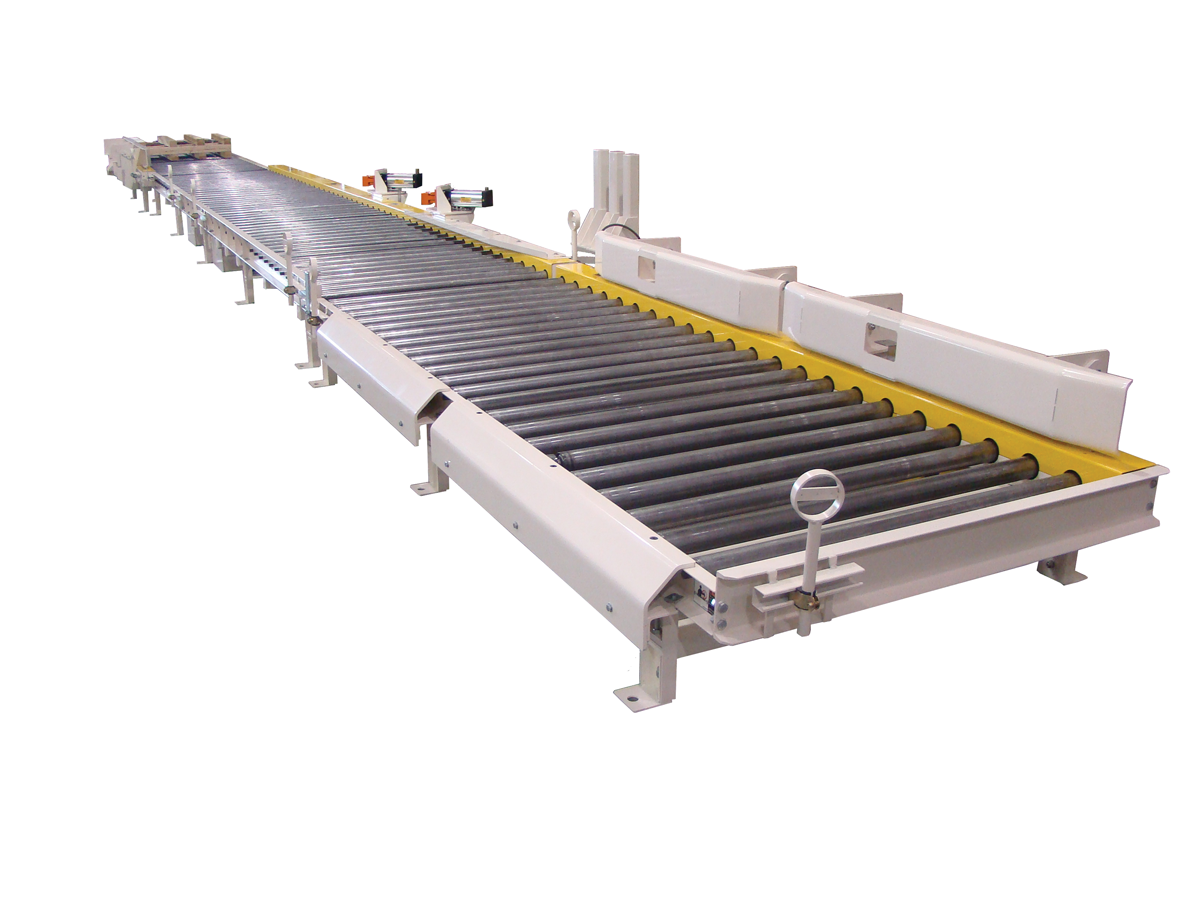

Chain Driven Live Roller

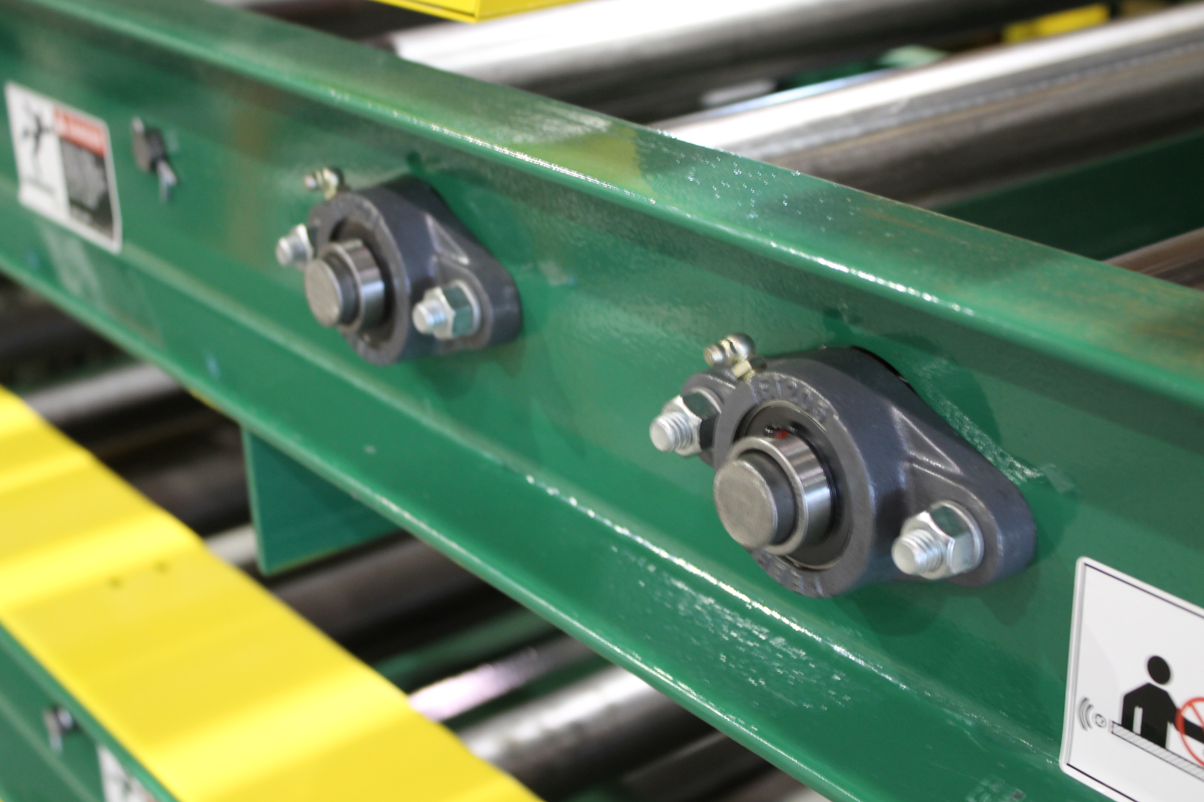

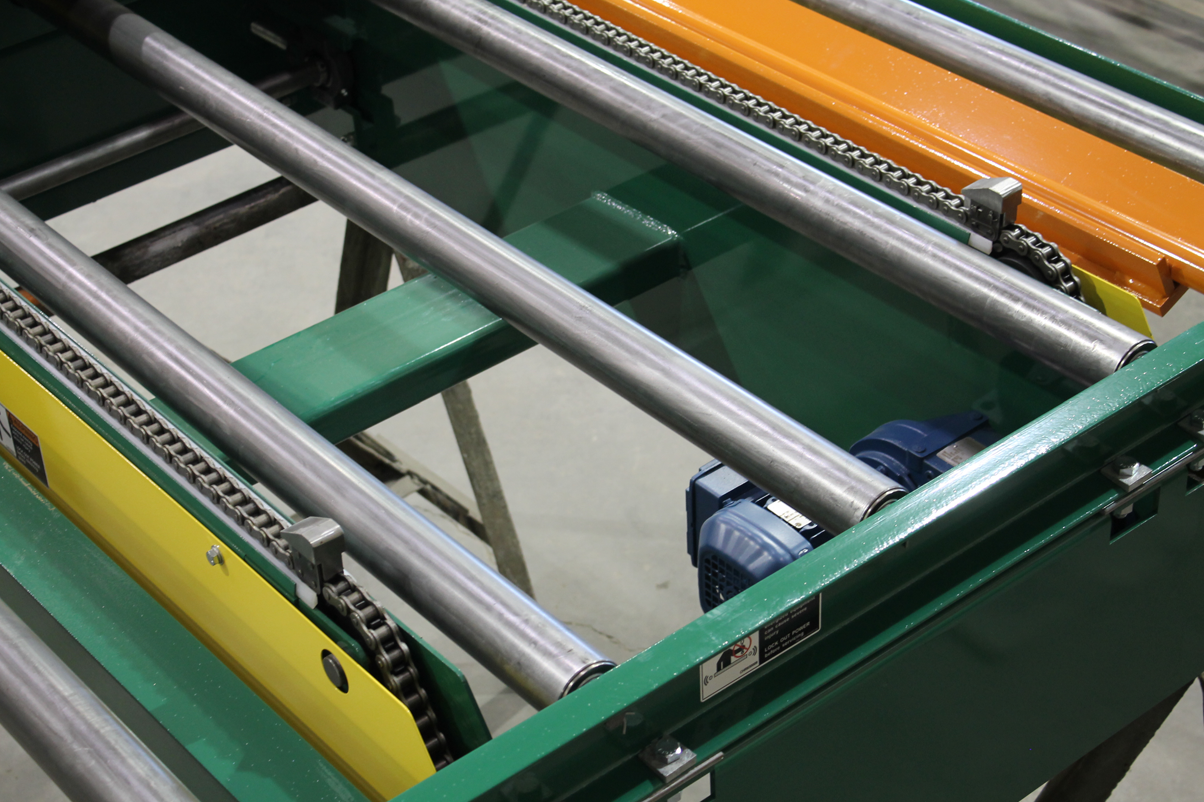

Chain Driven Live Roller conveyors are ideal for transporting loaded pallets, tires, drums, or other heavy items. Each roller has two sprockets and are driven by an adjacent roller. Rollers are held in place between two structural frames either by internal springs or retaining pins.

Conveyor Tech CDLR can be provided with electrical or hydraulic drive packages. Bolt-on or weld-on structural channel legs can be provided to satisfy any fixed height requirement. Adjustable legs are also available. Heavy duty CDLR conveyors are PRS’s specialty.

GET FINANCING

Specifications

Product Features:

Length: Standard 5' and 10' Sections
Width: 12" to 60" Effective Widths
Drive Configurations: Underslung, High Side and Low Side Drive Mounting Available
Drive Capacity: Up to 15,000 lbs. on Some Models
Rollers: 2-1/2" Diameter x 11 Gauge Wall, 11/16" Hex Axles Spring Retained
2.75" - 12" Roller Centers
RC-40, RC-50, RC-60 Roller to Roller Chain

Additional Information

Standard Features:

Welded, Structural Steel Frame Construction
Drives Sized to Match Loads by Factory
230-460/3/60 Primary Voltage
High Side, Low Side and Underslung Drive Mounting
30, 45 and 60 FPM Fixed Conveyor Speed
Continuously Welded Sprockets
Rollers Set High or Low on Non-Driven Side

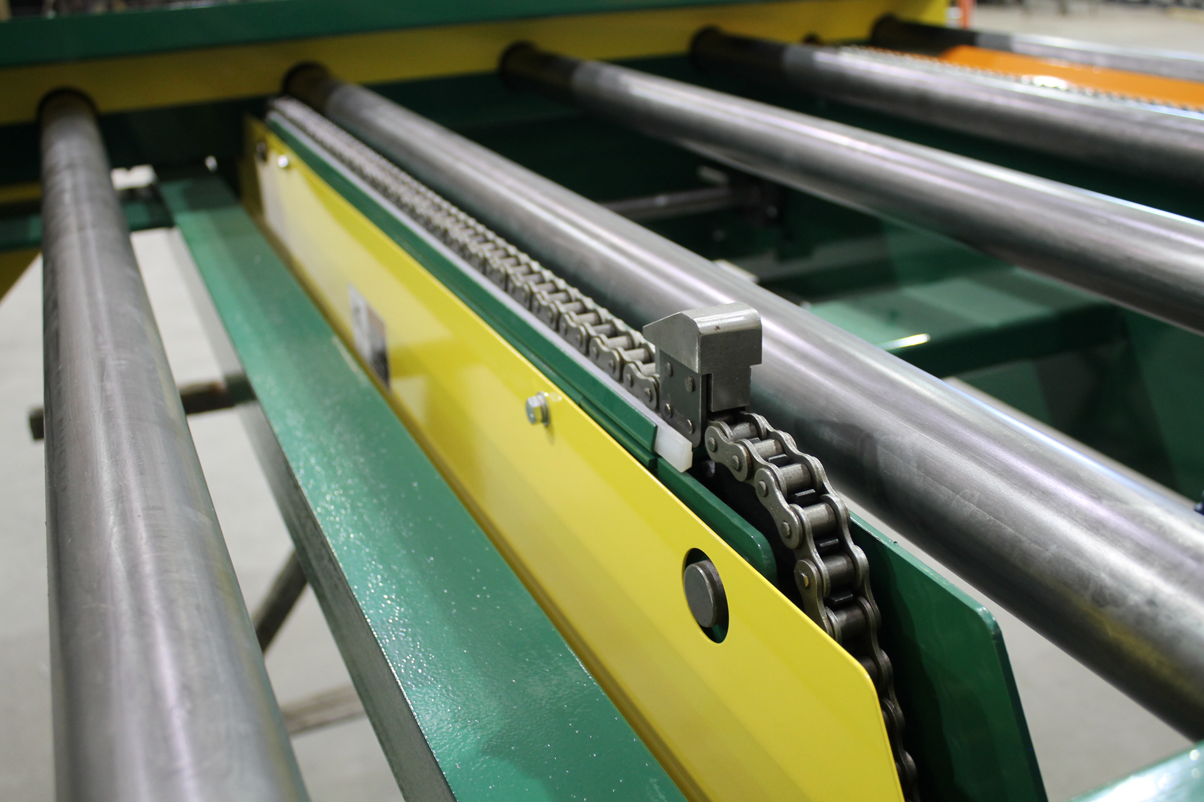

Scalloped Type Roller Chain Guard #10 Gauge and #16 Gauge Drive Chain Guard
Adjustable Heavy Duty Channel Supports
Shipped Fully Assembled for Easy Installation
Conveyors Fully Tested Prior to Shipment

PDF Downloads

Optional Items:

Tread Plates

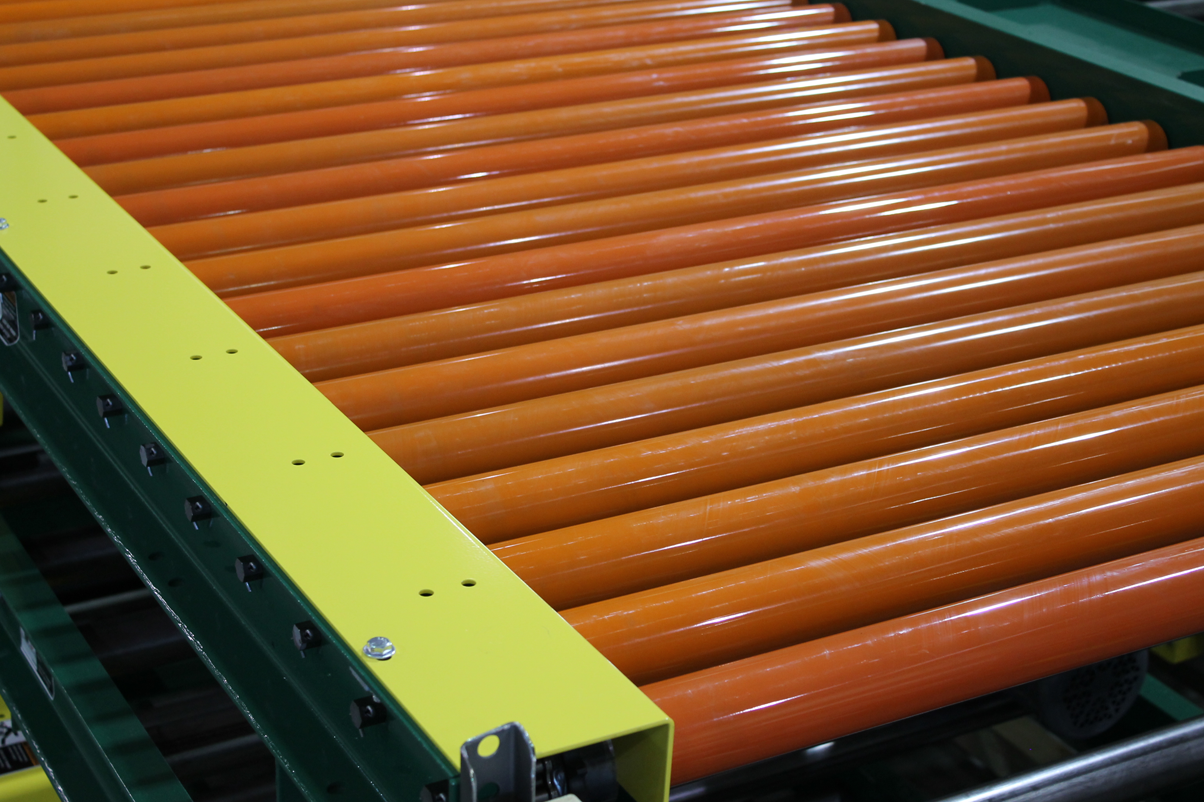

Polyurethane Roller Covering
UHMW Roller Sleeves
Zinc Plated & Galvanized Rollers
Blade Stops/Pin Stops
Photo Eyes & Pre-Wired Devices
Back Stops/Conveyor Guides
Fork Truck Barriers
Transition Rollers
Variable Frequency Drive (VFD) Rated Motors
Hot Dipped Galvanized Frames
Color Match Paint to Specifications
Zero Pressure Accumulation Controls
