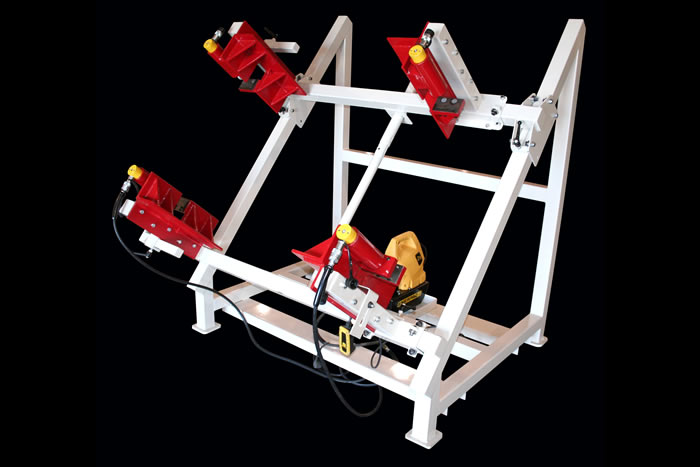

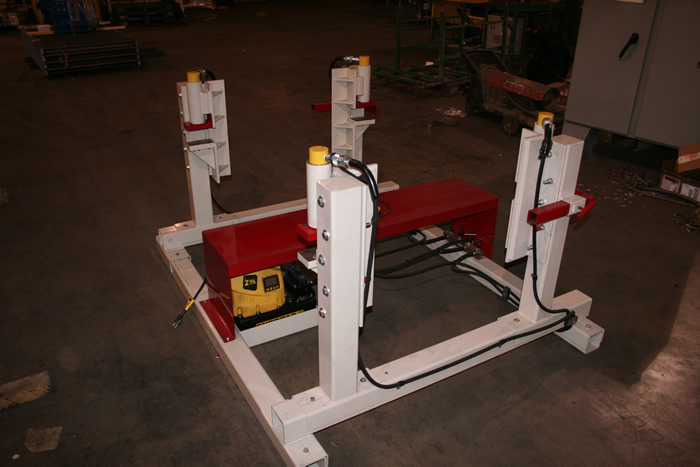

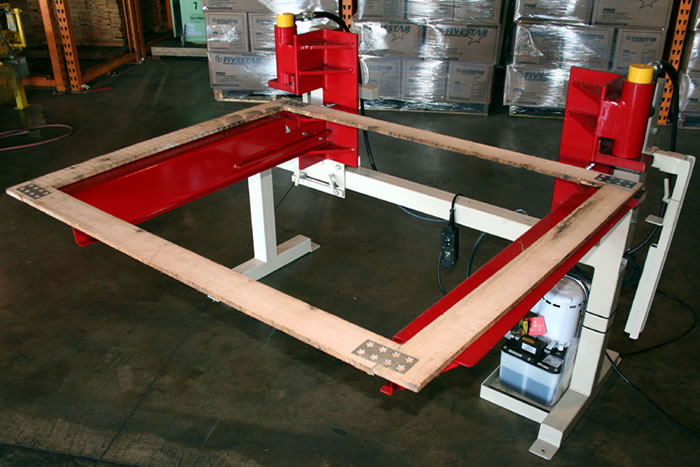

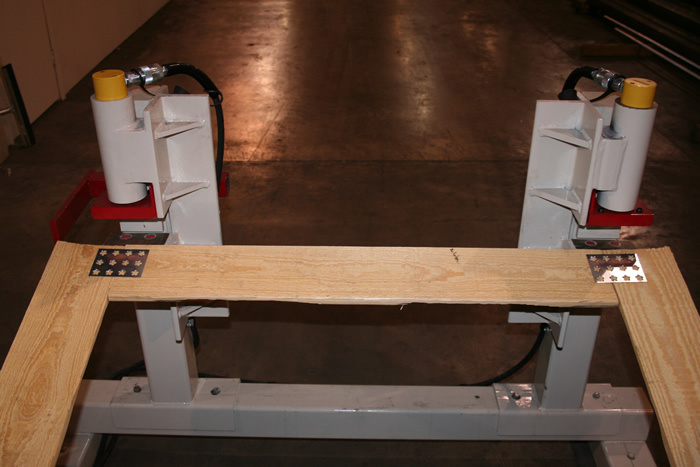

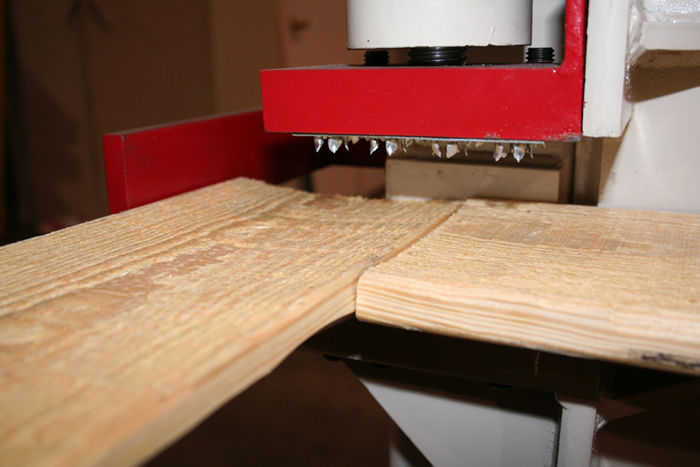

The PRS Four Point Frame Press is a production machine for the manufacture of top frames. A single, high pressure, hydraulic system powers 4 press cylinders at the push of a single button to quickly press metal connector plates into the 4 boards of a top frame. Designed for 1 or 2 operators, these machines typically produce around 60 frames per man hour. 110 volt single phase electrical required. Standard machine produces frames ranging from 36" x 46" up to 46" x 58" in overall size. The standard machine can handle plates up to 3" x 4" in size. It is offered in a horizontal design for a two operator process and an incline version that is designed for one operator. For lower volume frame manufacturing consider our Two Point Frame Press. It is a one operator machine and provides an ergonomic, simple means to manufacture top frames, crate sides, mats, and more.
Four-Point Frame Press CAD
FRAME PRESS FLYER
