Prosaw Band Dismantler XP

/Resources/5bff3053-255e-4cfb-a3b1-72e230a23a55/Prosaw-XP.png
/Resources/b195103e-fb07-42fa-9d84-7f509f8920ae/Prosaw-XP-3.png
/Resources/32b13f0b-8373-44e1-9284-6037699a7e8c/ProsawXP-4.png
/Resources/3d211632-1862-4a8d-ad0a-cf8ceb97e157/Prosaw-XP-2.png

Product Overview

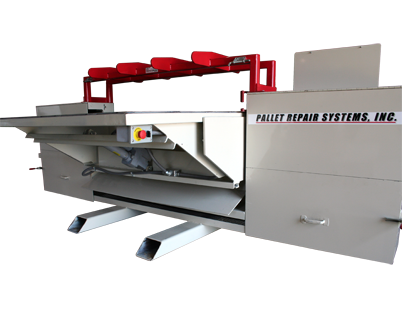

Prosaw Band Dismantler XP

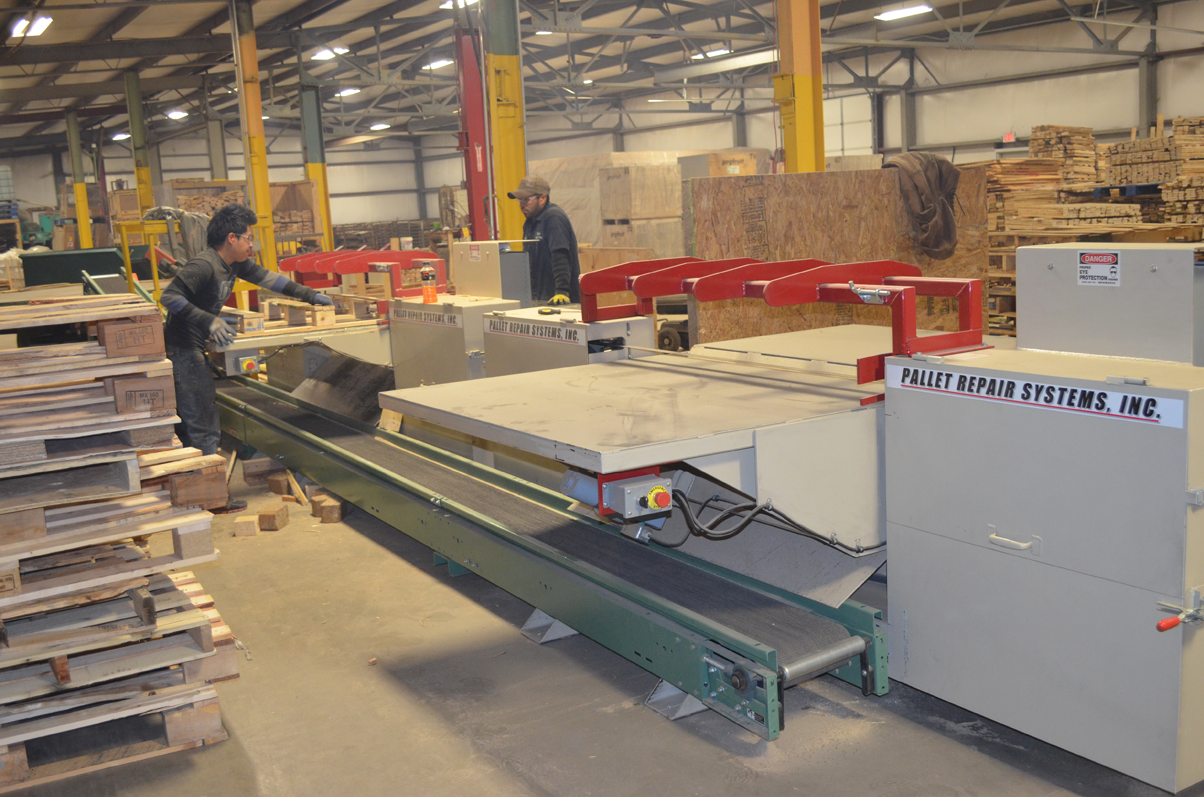

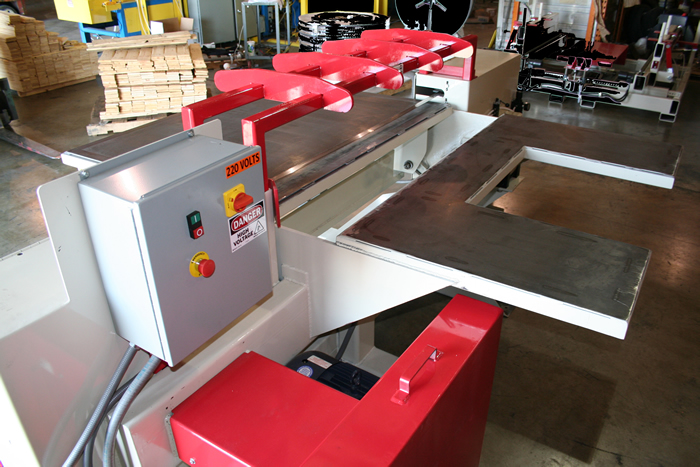

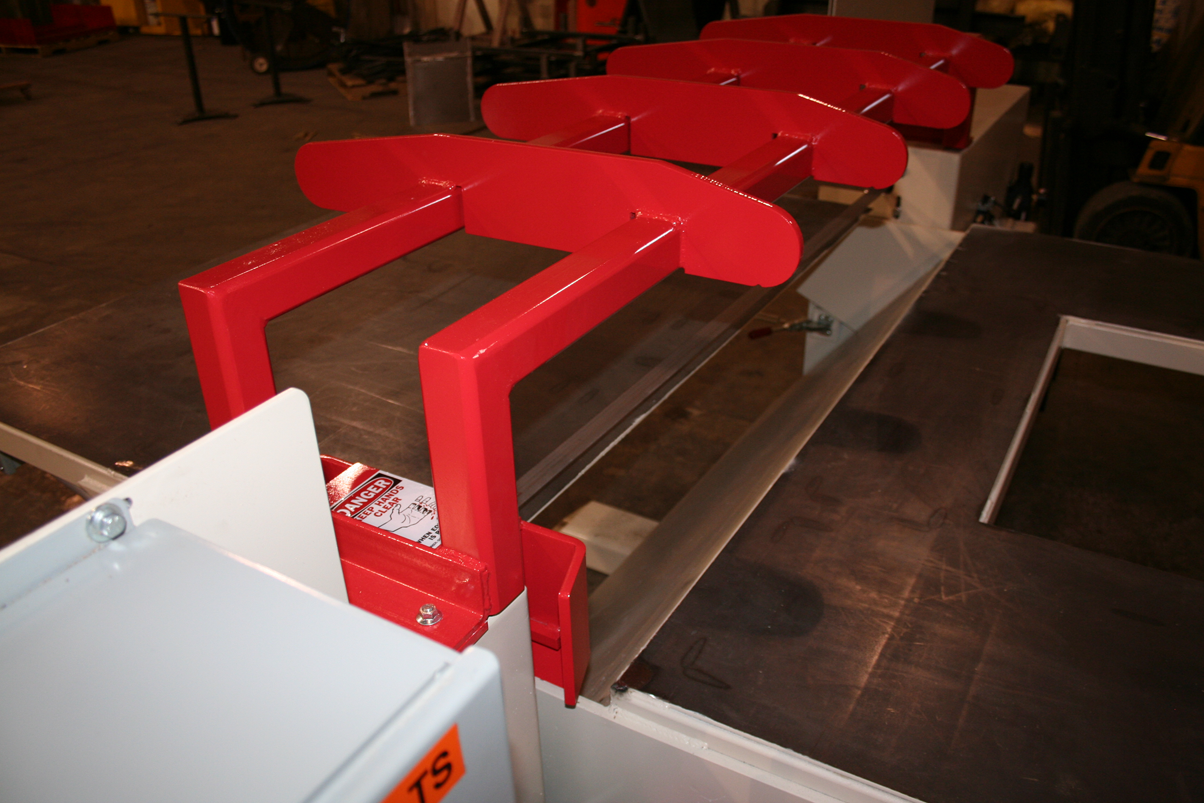

Designed for extreme performance, the PROSAW XP leads the industry in production capacity. The table has a lumber chute that allows recycled decking to drop onto a belt conveyor automatically. This leaves the operators with more time to pass pallets through the blade which means production! The table’s unique design supports the pallet better on the “pull” operator’s side for a smoother operation. And the exclusive PROSAW blade guard allows the pallets to rest on top thus providing the ability to process two pallets at a time for extreme production! The Model XP is a 2 operator machine but with the quick removal of a few bolts the machine can be operated by 1 operator.

GET FINANCING

Specifications

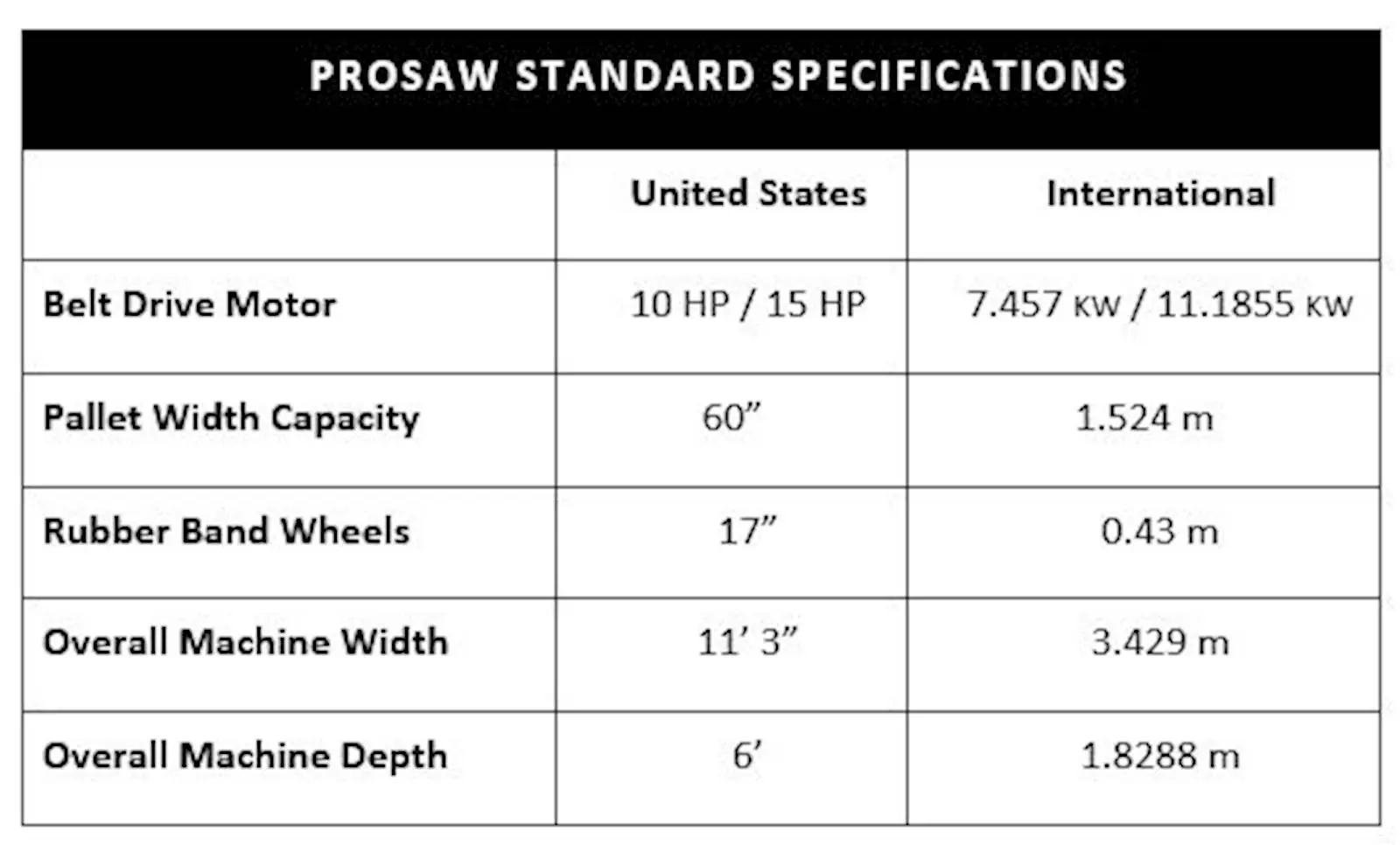

prosaw table.JPG

Additional Information

Specifications:

  • Bandsaw Style Pallet Dismantler
    • Versatile, High Yield Pallet Recycling
    • Great on Block Style and Odd Sized Pallets
  • 60" Pallet Width Capacity Standard
    • Other Width Capacities Available
  • High Speed Bands - 4,400 sfpm
    • High Production Throughout
    • Uses Inexpensive Carbon Blades
  • Rubber Tire Saw Wheels
    • Simple and Effective
  • Pnuematic Blade Tensioning
    • Quick Blade Changes - More Uptime
  • Electronic Safety Interlocked Cabinet Doors
    • Keeps Operators Safe
  • Dual Emergency Stop Buttons
    • Gives Both Operators Shut Down Access
  • Electrical Requirements
    • 208/240/480/3/60 Standard
    • Starter/Disconnect Included
  • Physical Size
    • 7' Overall Width x 11' 3" Overall Length (2.13 m x 3.42 m)
    • 2,600 - 3,050 Pounds Net Weight

PDF Downloads

PROSAW XP-AT-15 CAD DRAWING



PROSAW XP CAD DRAWING



PROSAW FLYER
