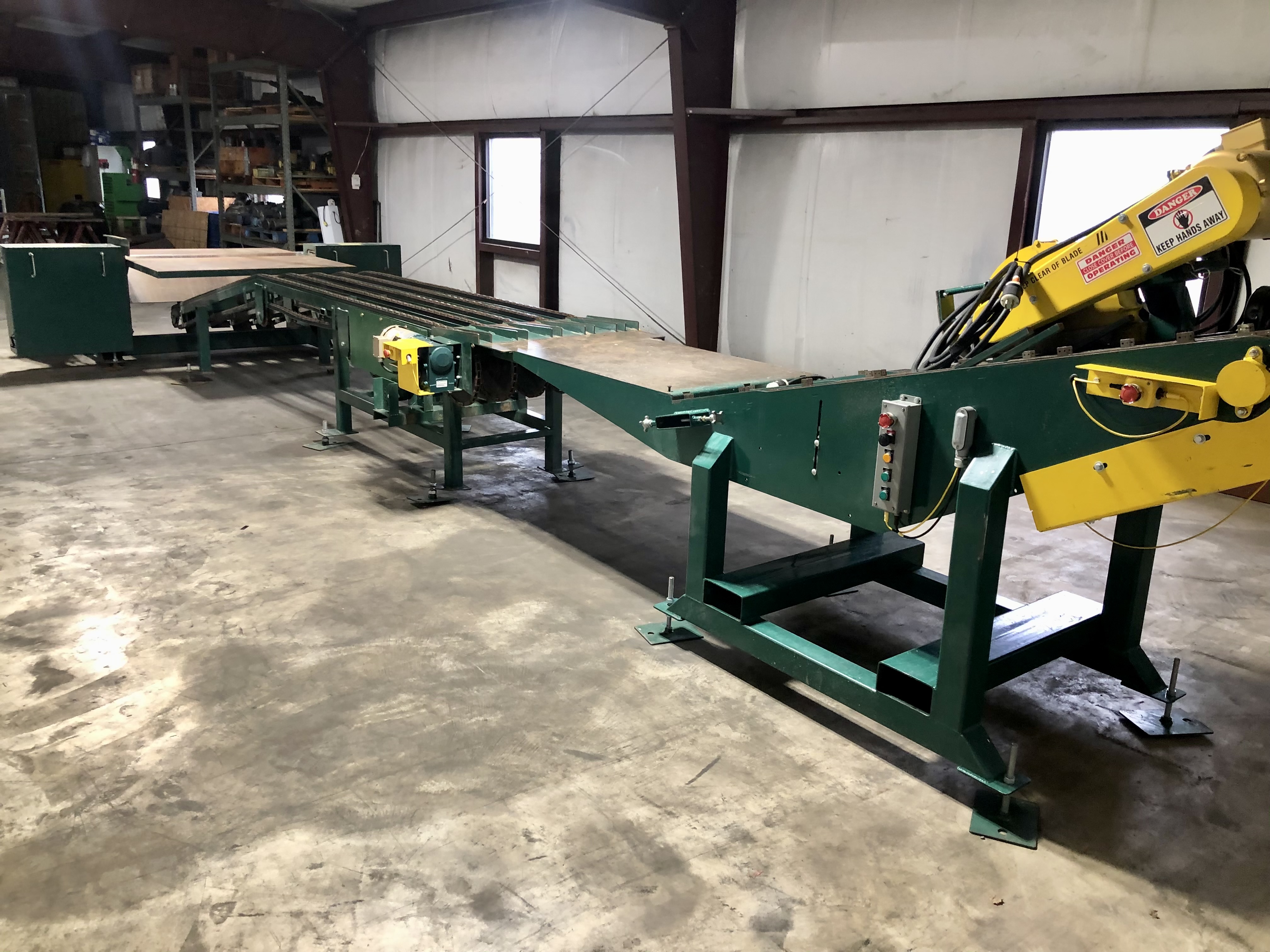

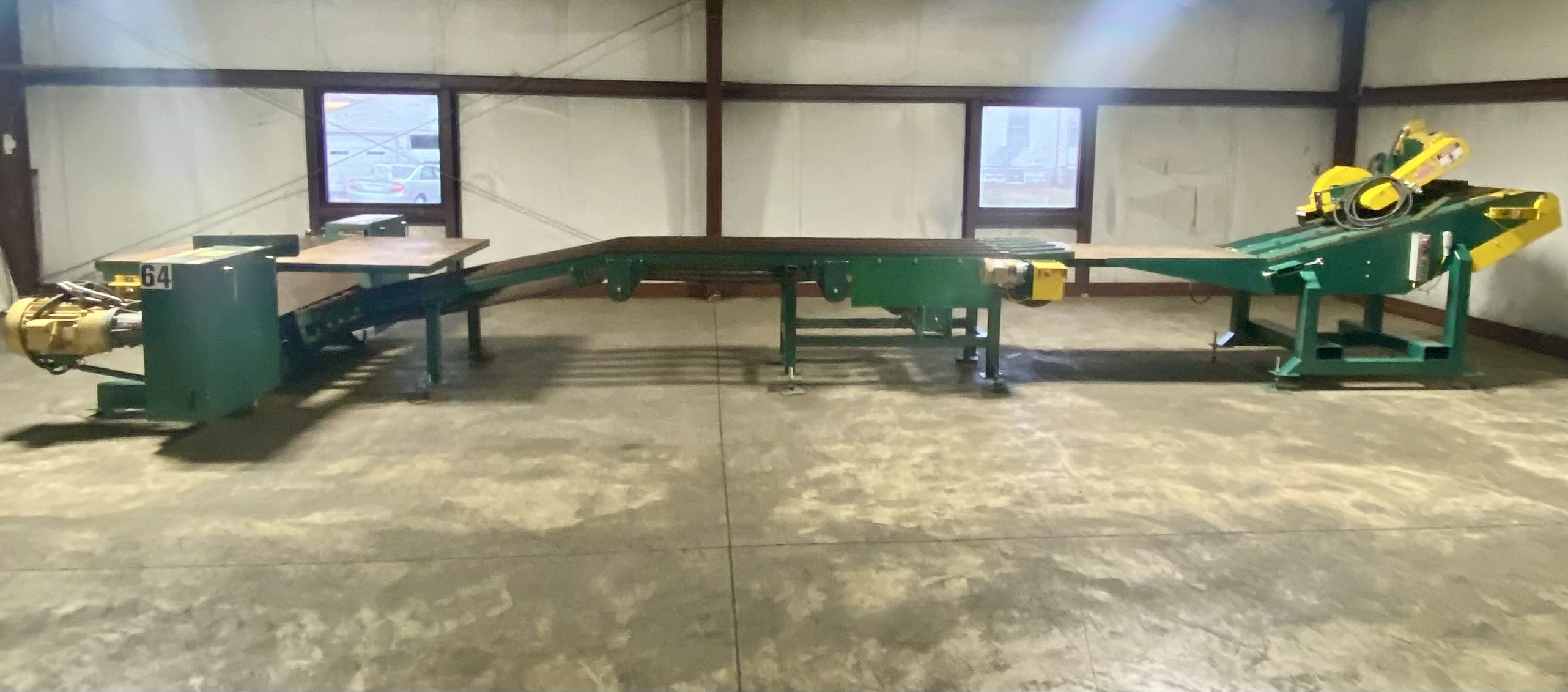

Smart Products Pallet Dismantling System

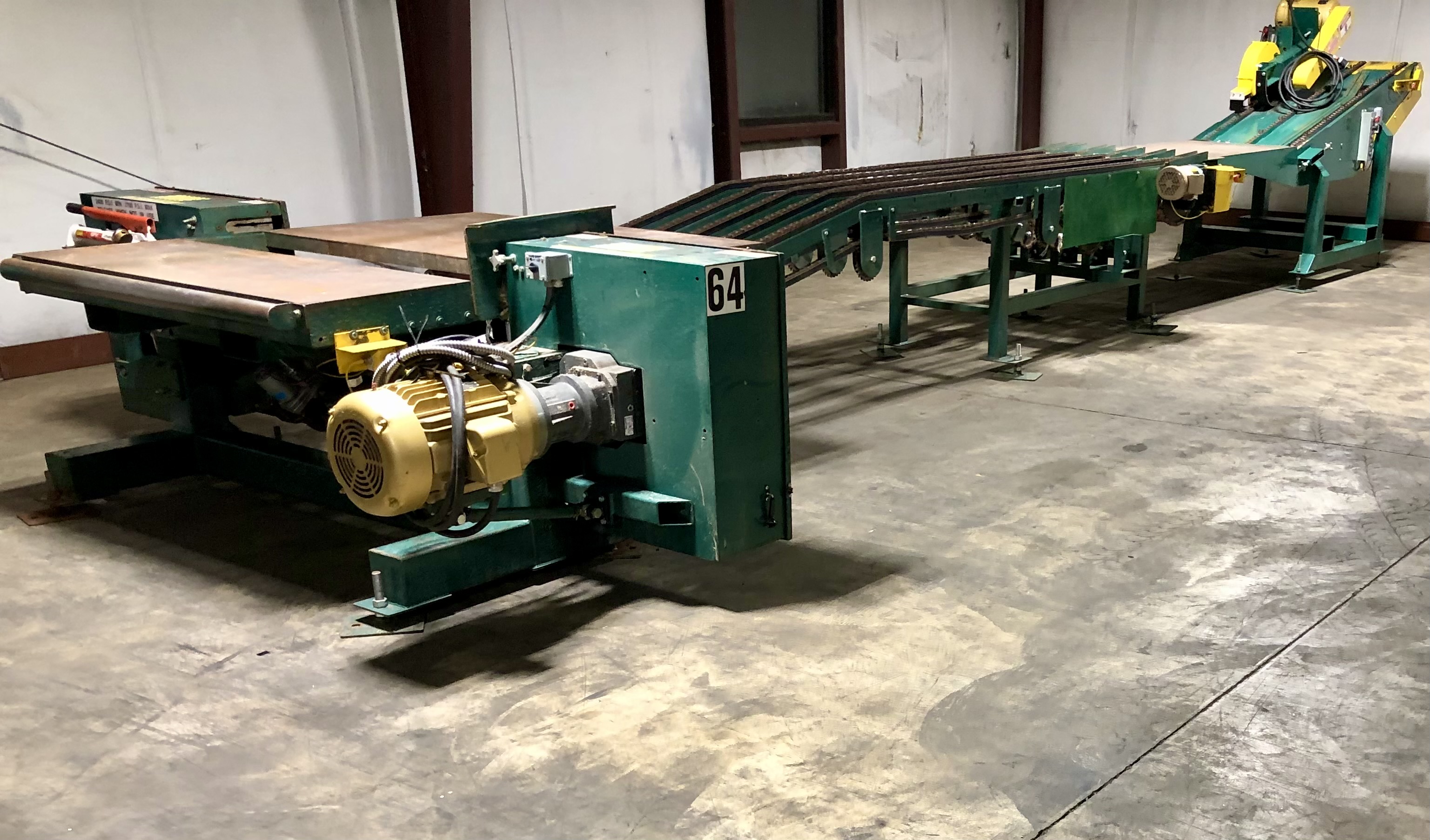

- 64" HD "front discharge" dismantler - 3 Phase, 15 HP, 208volt, 1750 RPM motor

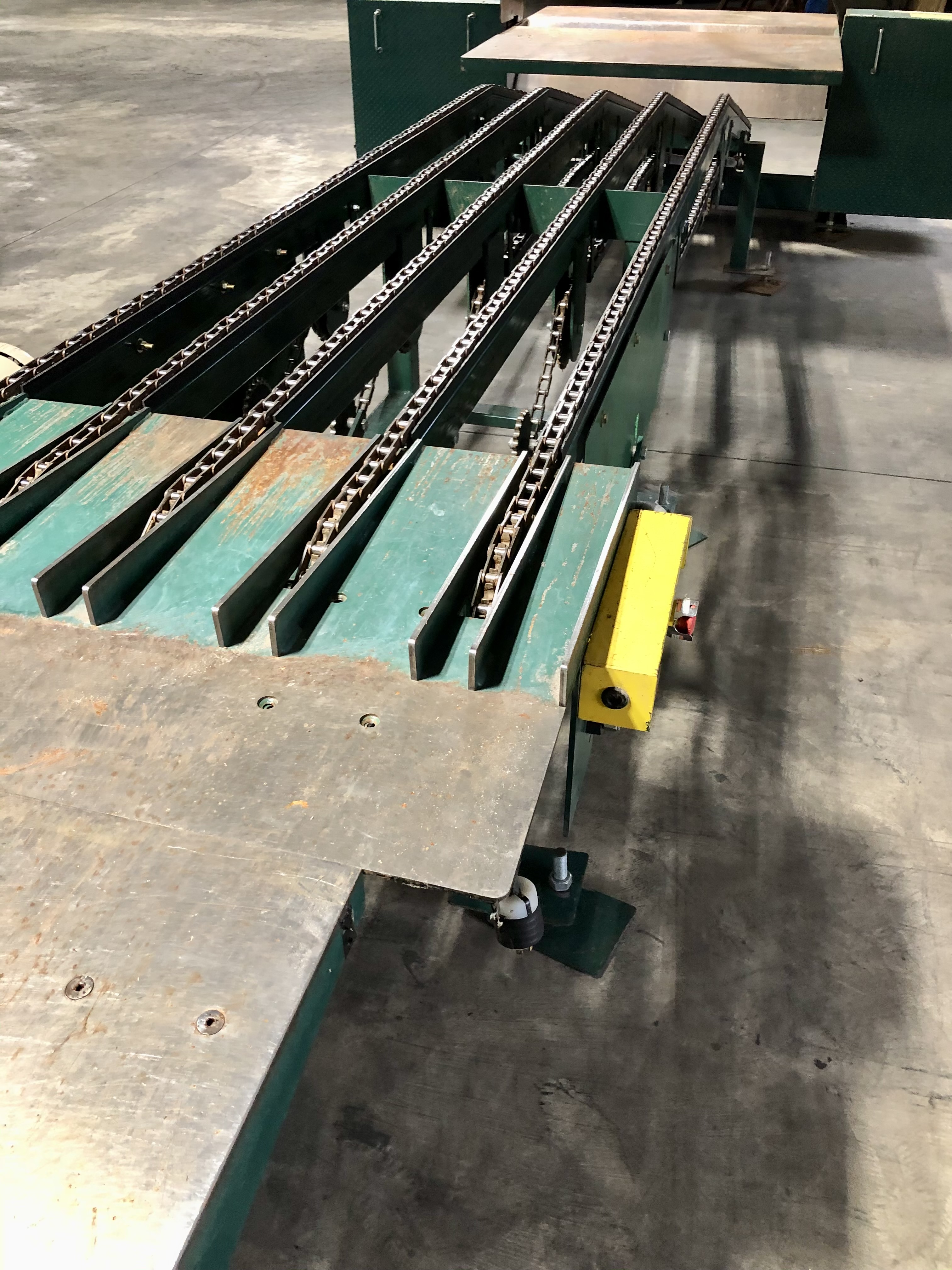

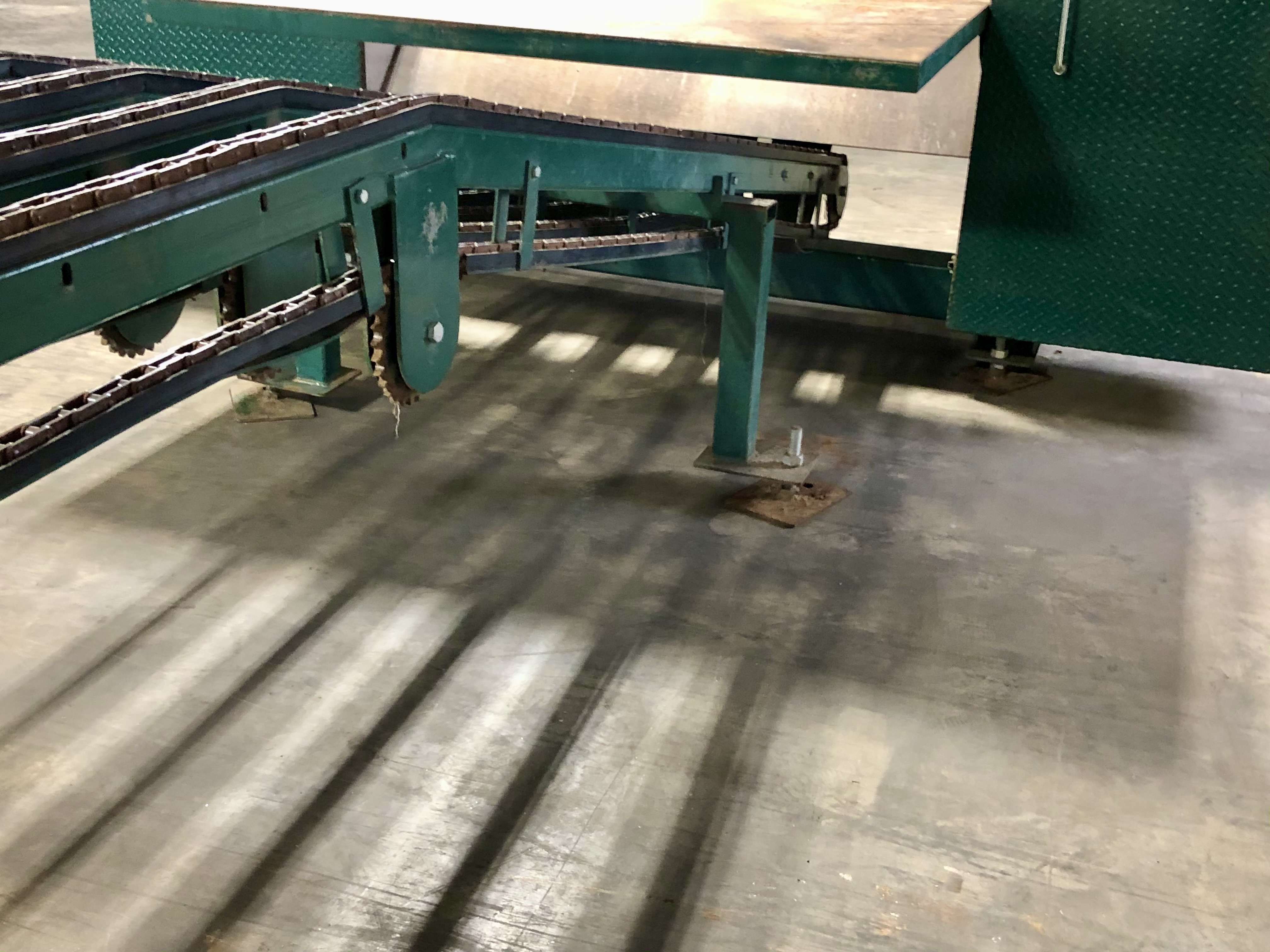

- 17' long "5 chain" accumulating board transfer conveyor (ACC) 3 Phase, 1 HP, 208volt, 1140 RPM motor (1750RPM motor with VFD's)
- UHMW lined transfer collection chute for lumber conveyed from side dismantler

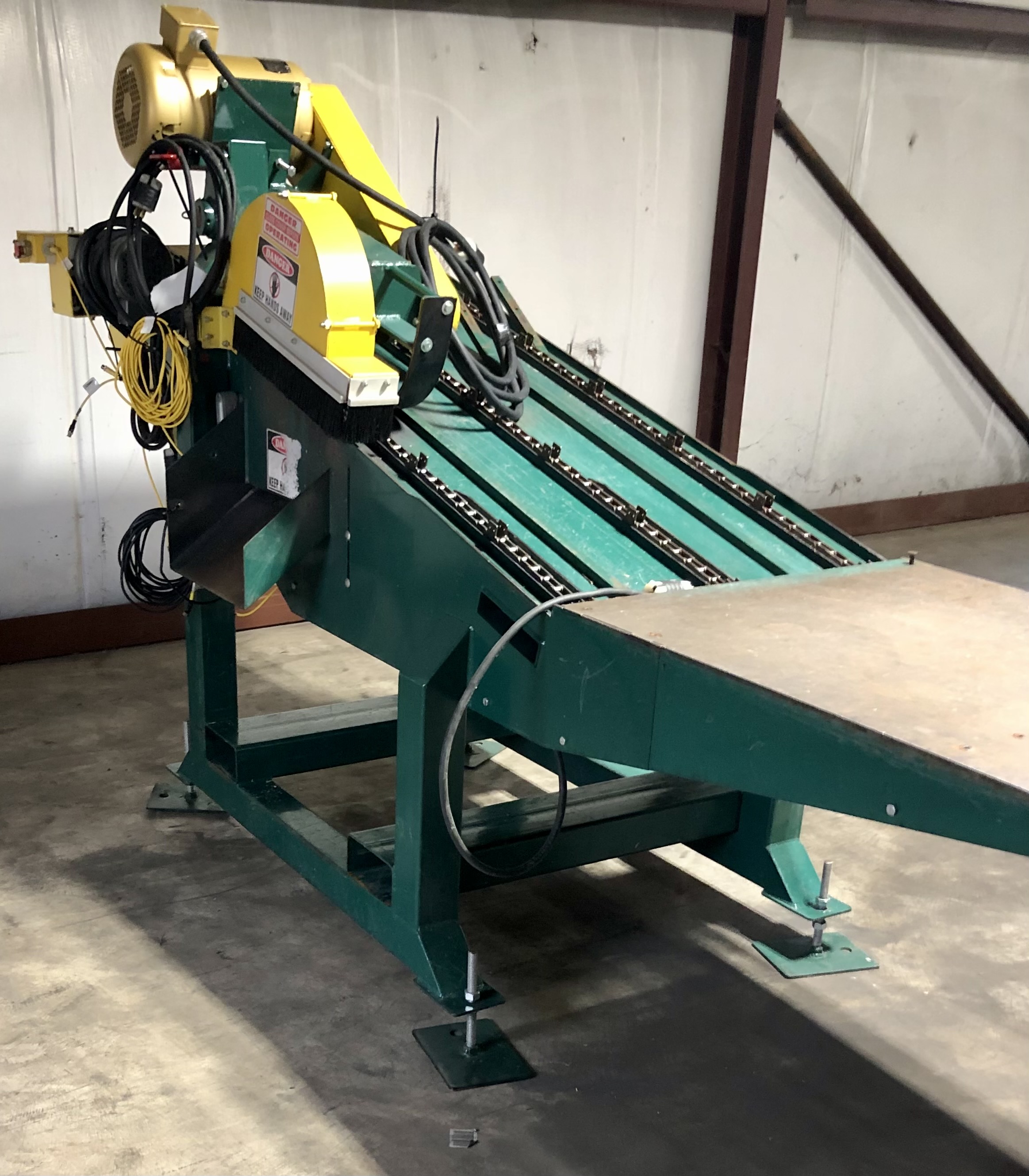

- Single end power feed incline trimsaw - 10HP, 3 Phase, 208volt, 1570 RPM motor
- Enclosed dust chute for scrap waste discharging from machine
- Feed powered by ABB Baldor 1/2 HP, 3 Phase, 208volt, 1140 RPM motor
- Saw cuts board up to 2" thick in lengths from 18" to 60"
- Purchased new in 2021, Excellent working condition!
- Wired as 240volt, 3 Phase
$38500.00
