Product Overview

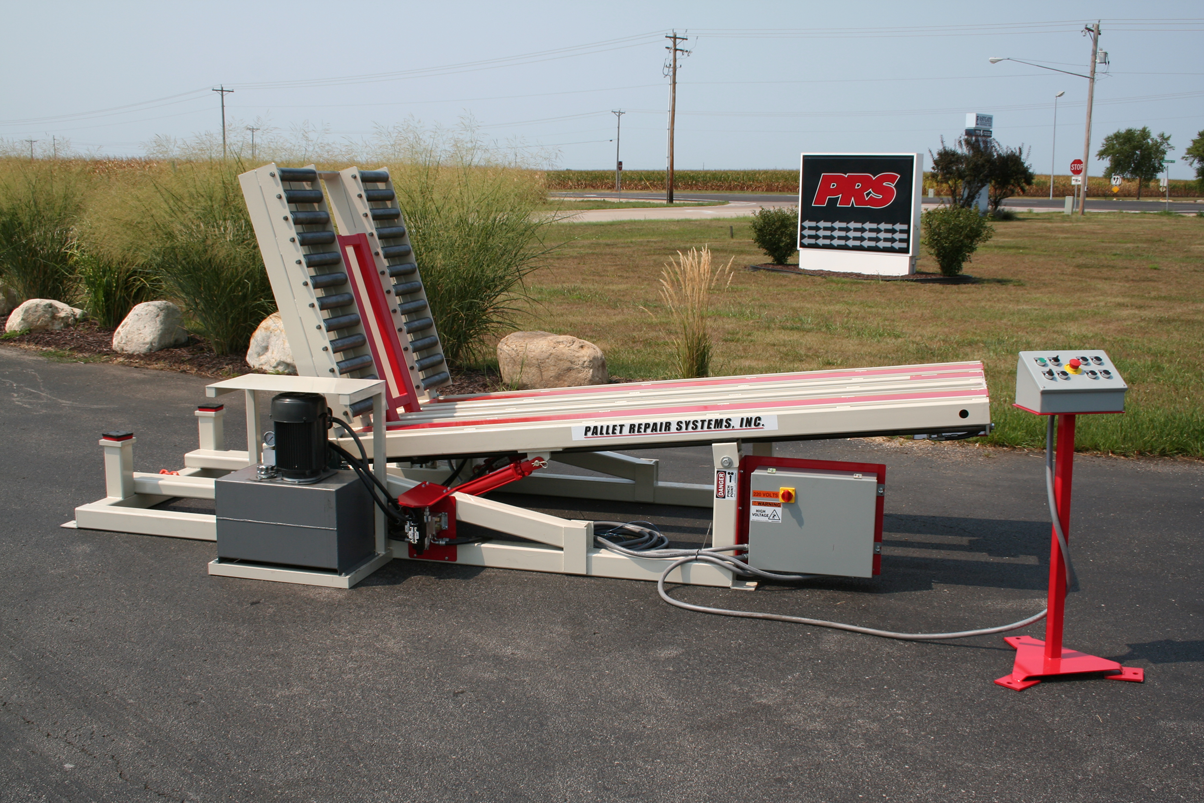

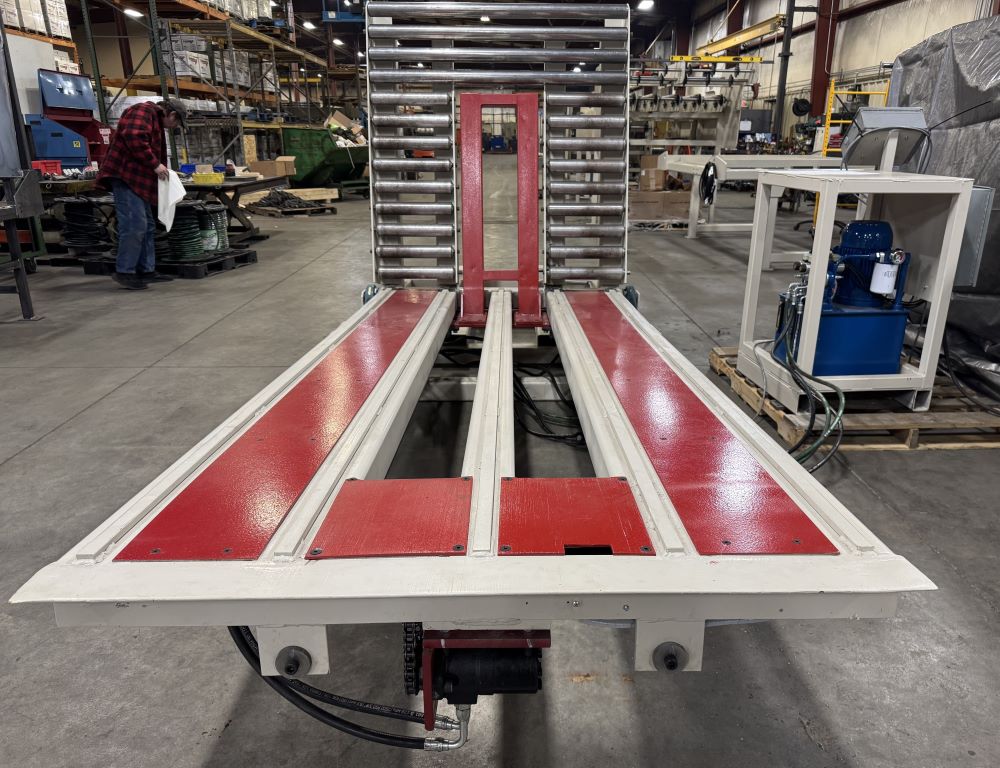

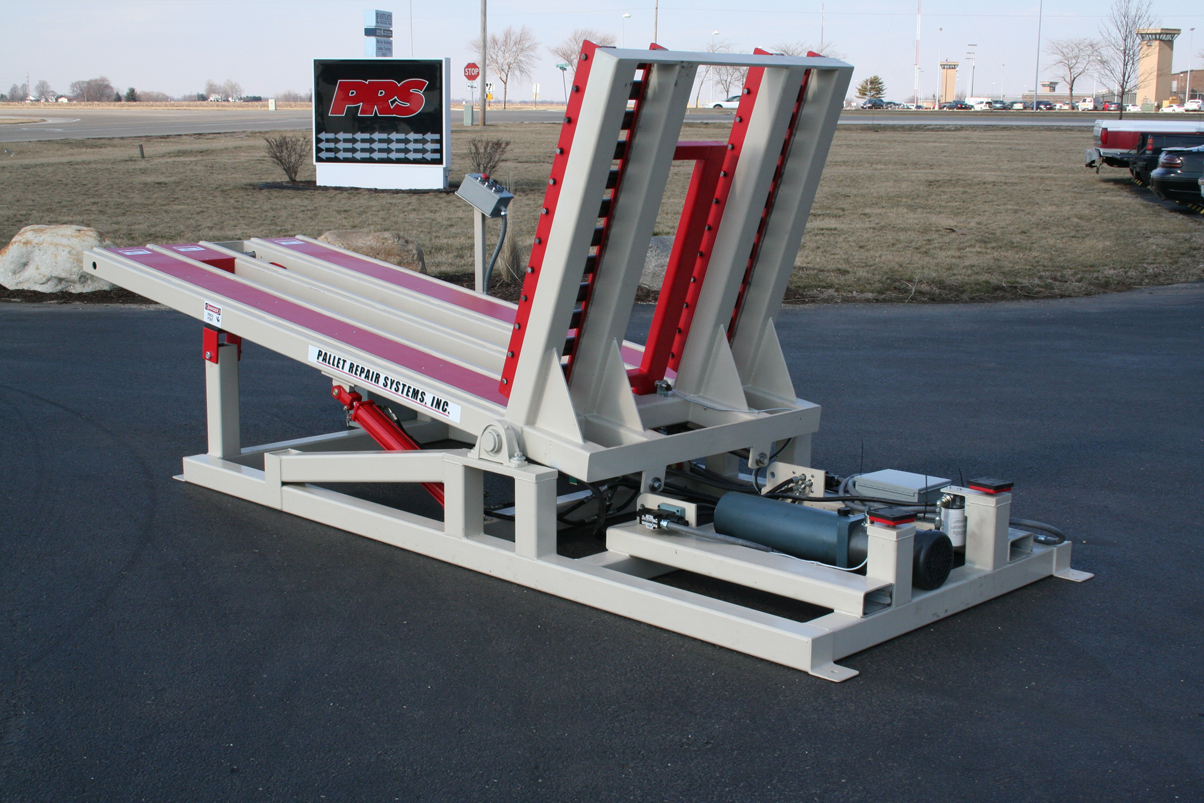

AI & AI-X Tipper

Stack-O-Matic stack tippers maximize efficiency, production, and safety while lowering the cost of the material handling tasks of de-stacking and inspecting pallets.

Both models of Stack-O-Matic tippers, the AI and the AI-X, are designed with fully automatic indexing to quickly dispense pallets, no matter what shape they are in. As the operator tilts one off of the end of the tipper the machine’s carriage quickly indexes forward, providing the next pallet to the operator.

GET FINANCING

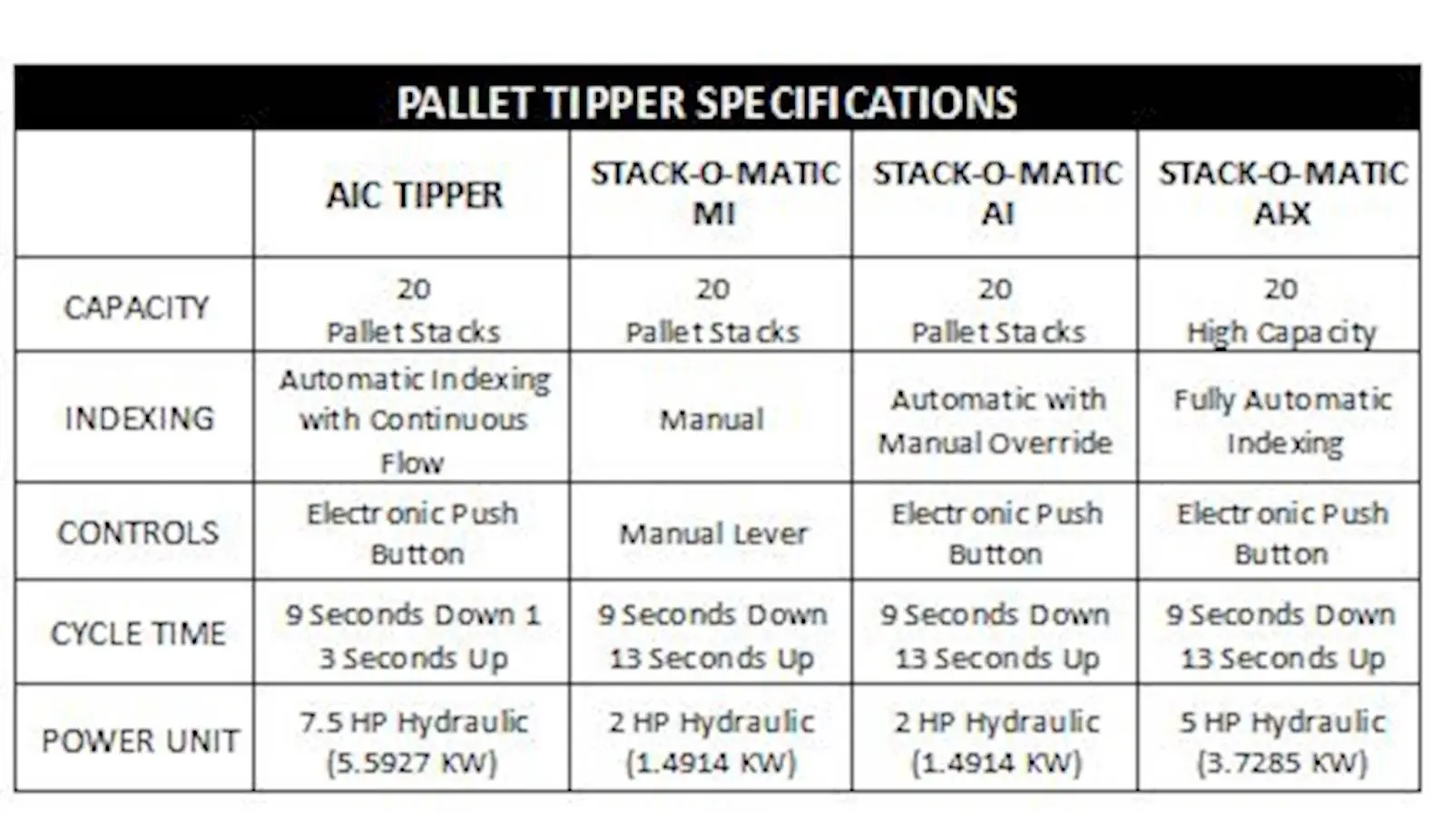

Specifications

Stack-O-Matic Tipper Features:

Semi-Automatic Operation
20 Pallet Stack Capacity
Indexing Carriage
2 hp Industrial Hydraulic Power Unit Package
Workgroups Compatible

Physical Size:

Height - 11'6" (Upright, Loading Position) 6'4" (Tipped, Dispensing Position)
Width - 5'
Length- 10'8" (Upright, Loading Position) 13'5" (Tipped, Dispensing Position)

Additional Information

PDF Downloads

STACK TIPPER CAD DRAWING

TIPPER FLYER
