Product Detail

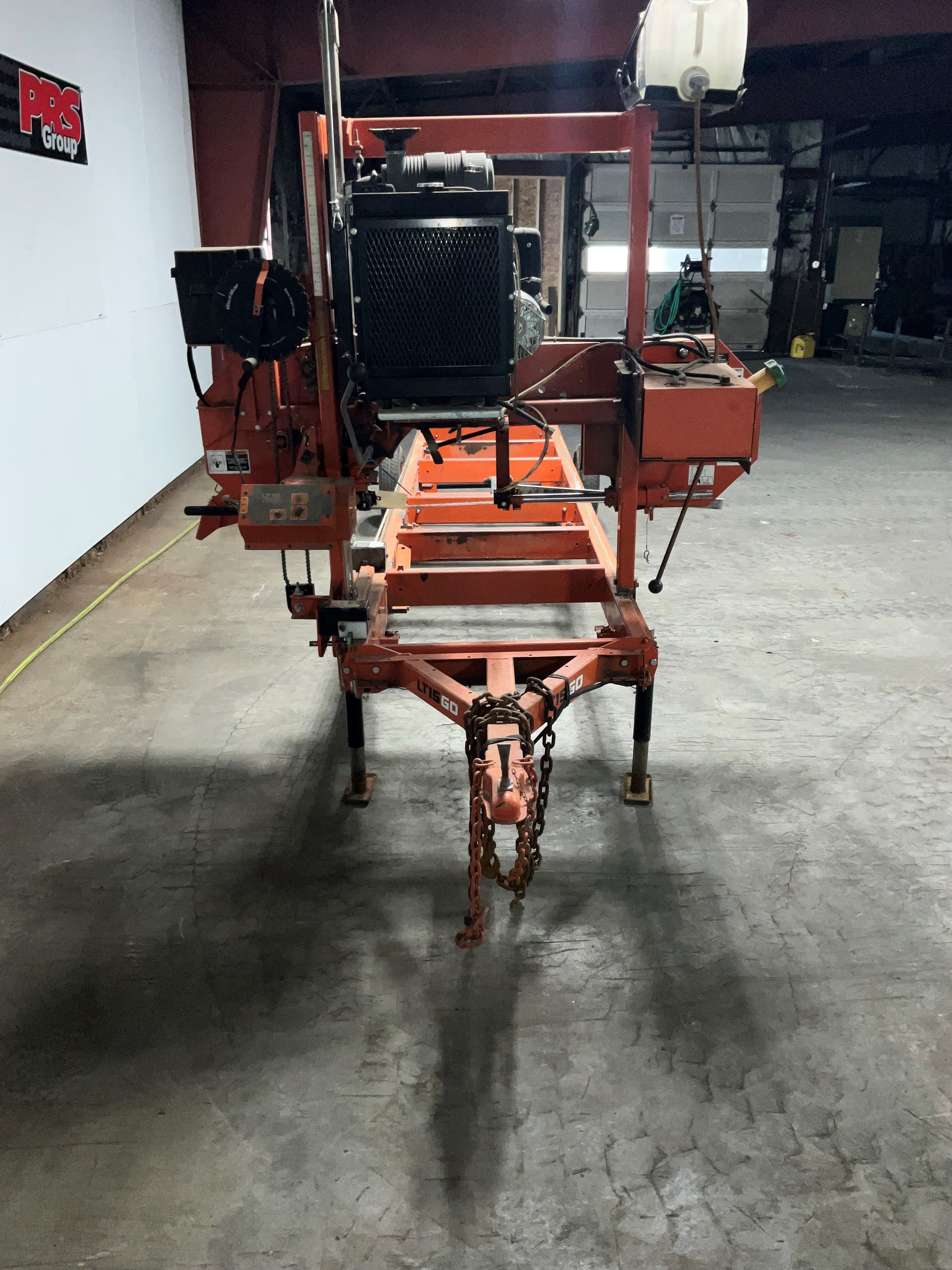

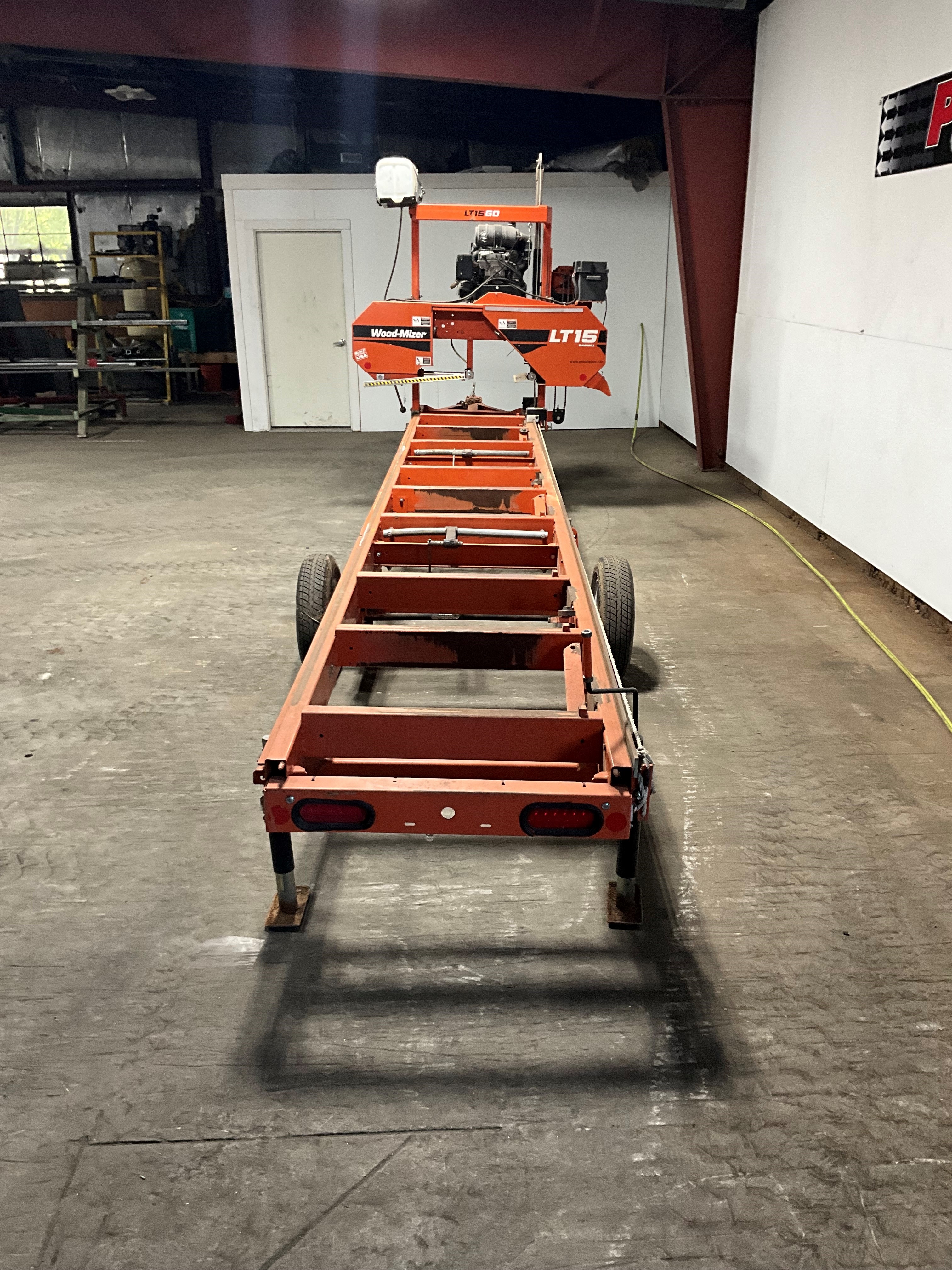

Woodmizer LT15D17 Portable Sawmill with GO Trailer (LT15TRGZ) and Power Feed

Pre-Owned Promise Logo

Product Overview

The LT15 portable sawmill features a cutting capacity for sawing 28" diameter logs into 26" wide boards up to 17' 8" in length with optional 6' 8" extensions for sawing longer lengths. Built in the USA with premium quality steel and industrial-grade powder coat paint, the LT15 adds durability with a steel box bed frame and features gas, diesel, or electric sawmill options, a quick up/down sawhead, gravity-fed blade lubrication, steel side supports, steel log clamps, optional saw head power feed, optional GO trailer, and more for a portable sawmill that is versatile, reliable and trusted throughout the world.

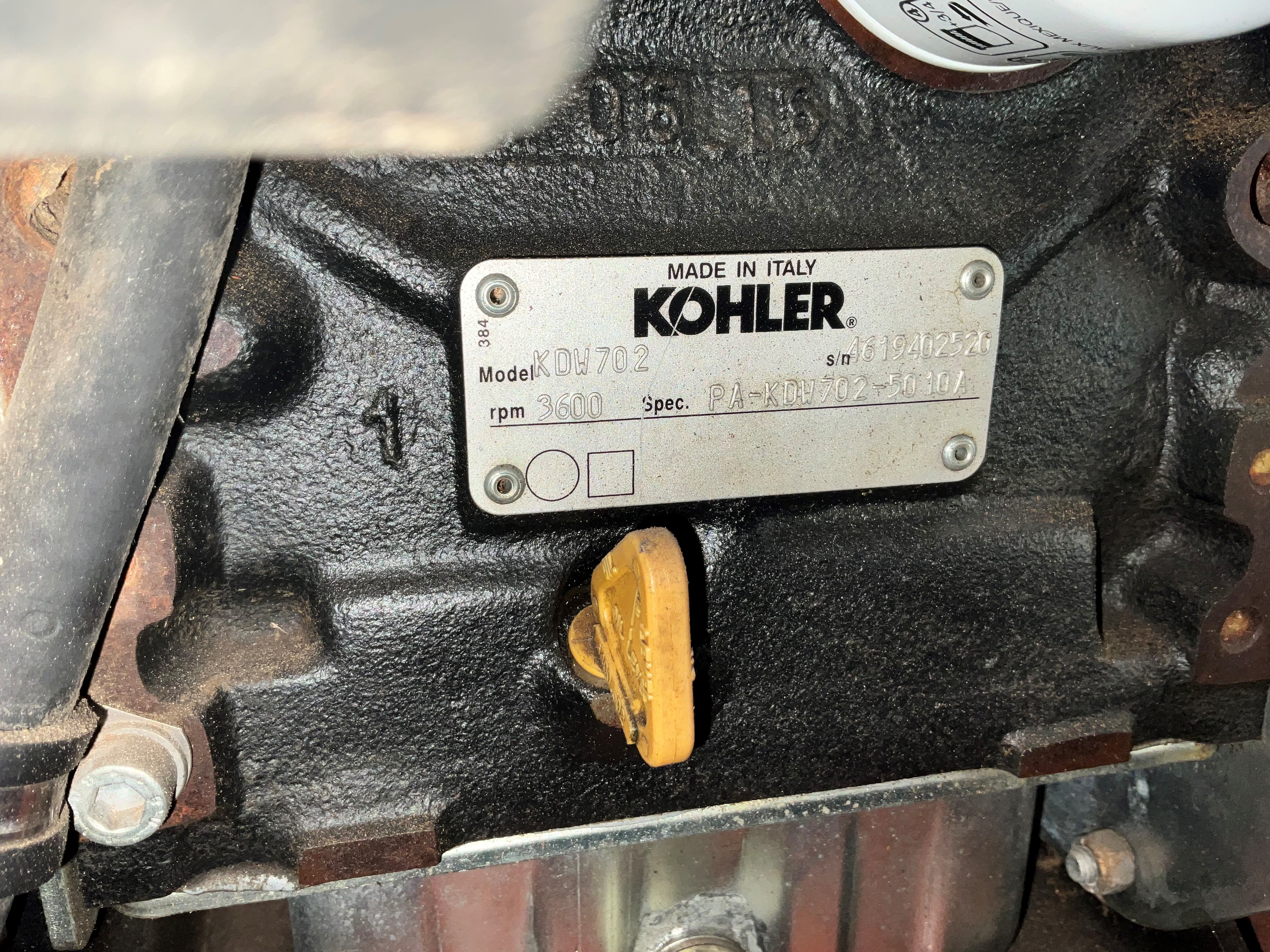

Powered by                       17HP (12.7kW) Kohler diesel

Cutting Capacity
Max Width of Cut 26" (.66m)
Max. Log Diameter 28" (.71m)
Max Cant Width 23" (.58m)
Production Rate up to 320 bd ft/hr (.75m³/hr)
Max Depth of Cut 10 1/2" (.26m)
Max Log Length 17.7' (5.4m)
Max Log Length (with extensions) Unlimited
Log Weight 4,000lbs (1,814kg)
Blade
Blade Length 158'' (4,010mm)
Blade Guides Style Roller Guides
Blade Lubrication System 5Gal. (18L) Water Tank with On/Off Valve
Blade Tension System Cam Easy Tension Handle
Blade Thickness .042" (1.07mm)
Blade Width 1 1/4" (32mm)
Blade Guides Size 1 1/4" (31.75mm)
1 1/2" (38.10mm)
Blade Wheels
Blade Wheel Diameter 19" (483mm)
Blade Wheel Type Belted Blade Wheels
Head Features and Options
Operator Location Walk Along Crank Feed
Setworks N/A
Head Forward/Reverse Crank Feed

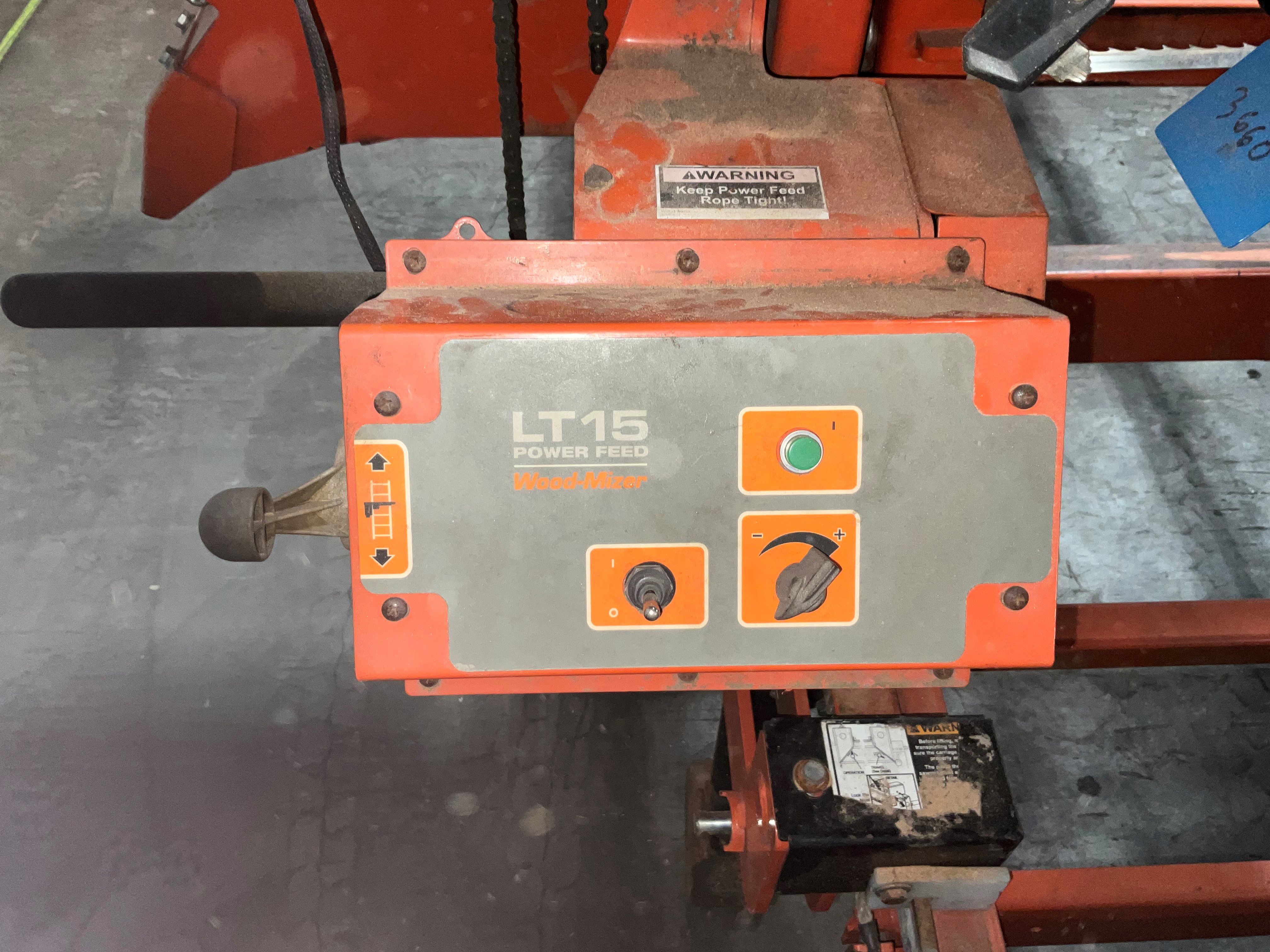

Power Feed (optional)
Head Up/Down Hand Crank
Blade Engagement Manual Lever
Blade Guide Arm Adjusted with Manual Lever
Board Removal N/A
Bed Features and Options
Side Supports 6 Adjustable Side Supports. (3 with heavy duty rollers)
Log Leveling N/A
Log Turning Manual
Log Loading Manual
Log Clamping 2 Adjustable Log Clamps
